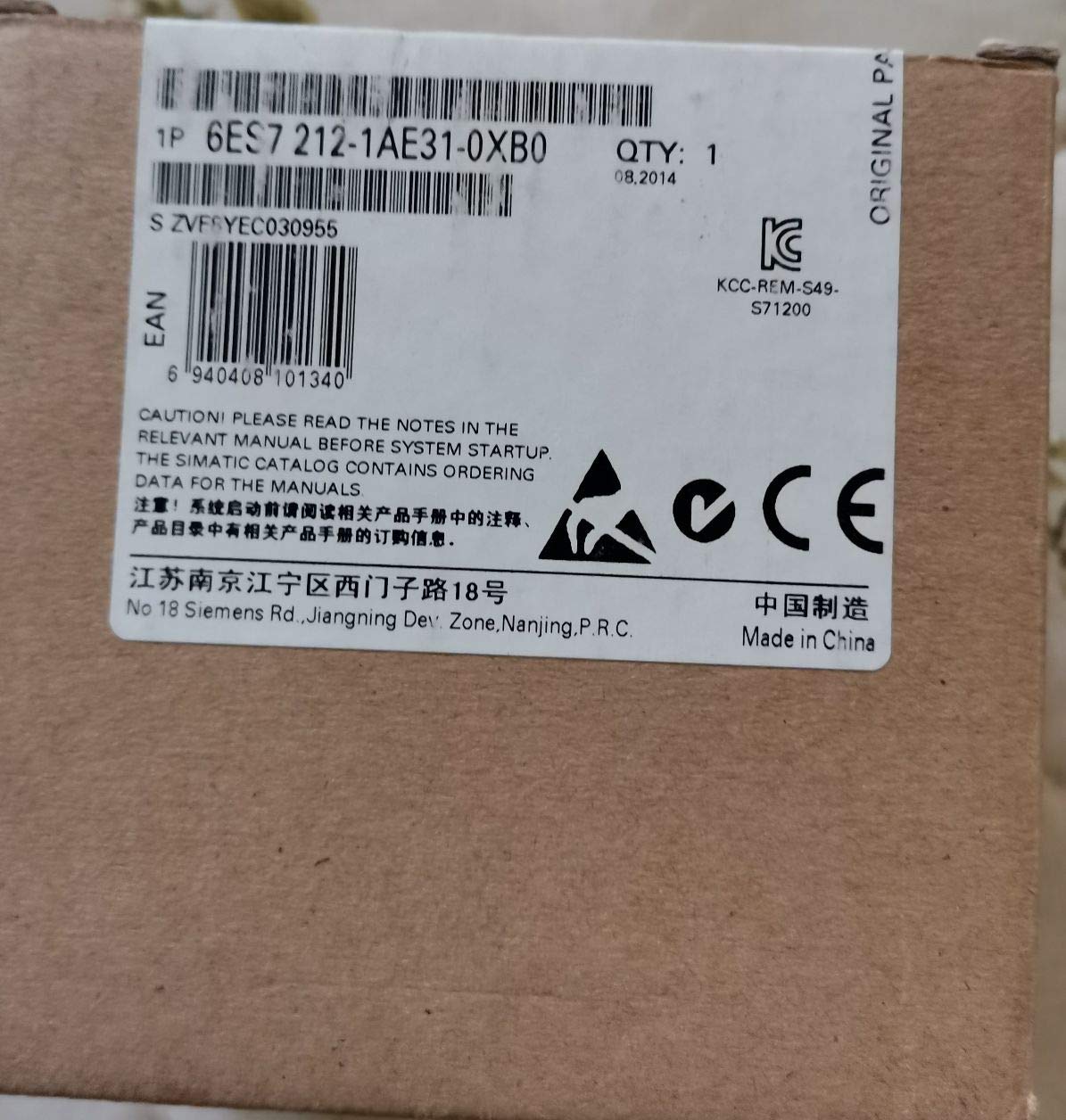

6ES7212-1AE31-0XB0 - CPU 1212C DC/DC/DC 1

6ES7212-1AE31-0XB0 - CPU 1212C DC/DC/DC 2

0945.701.984 (báo giá) 0913.832.029 (báo giá)

Hàng chính hãng SIEMENS

Freeship nội thành HCM

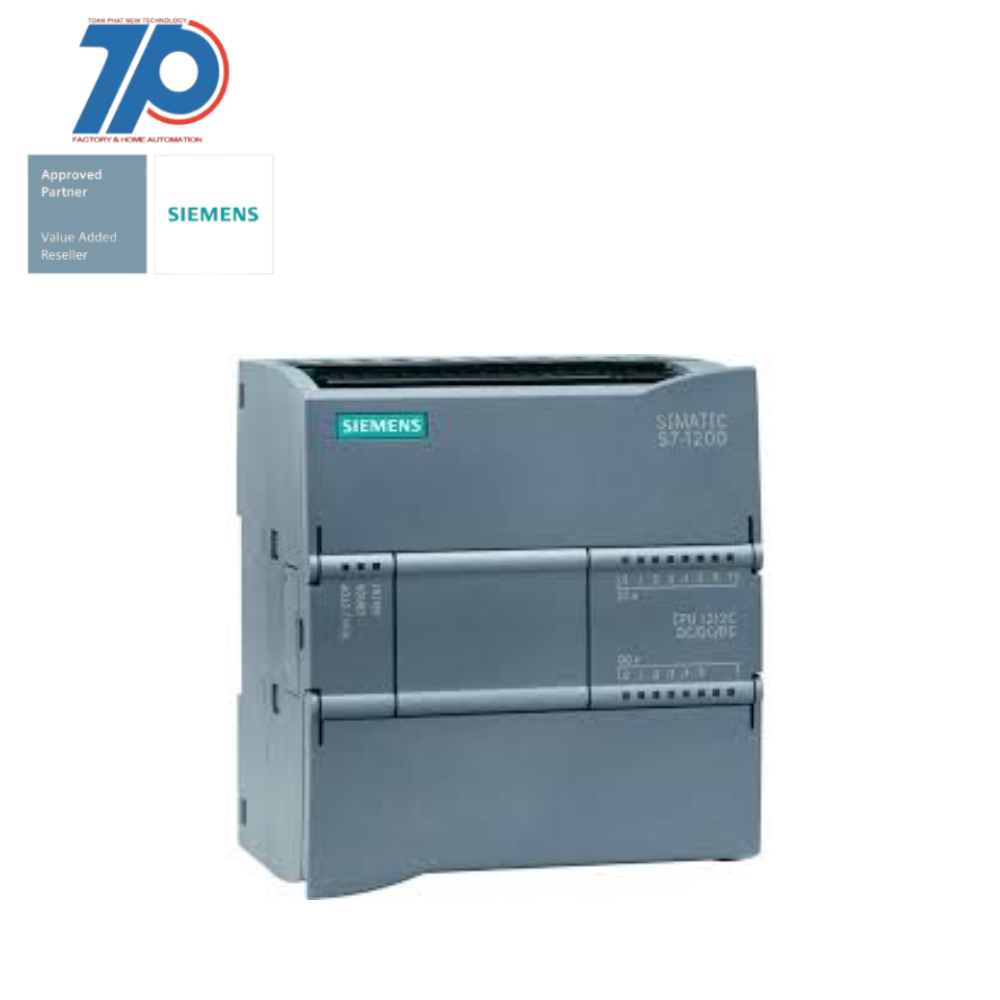

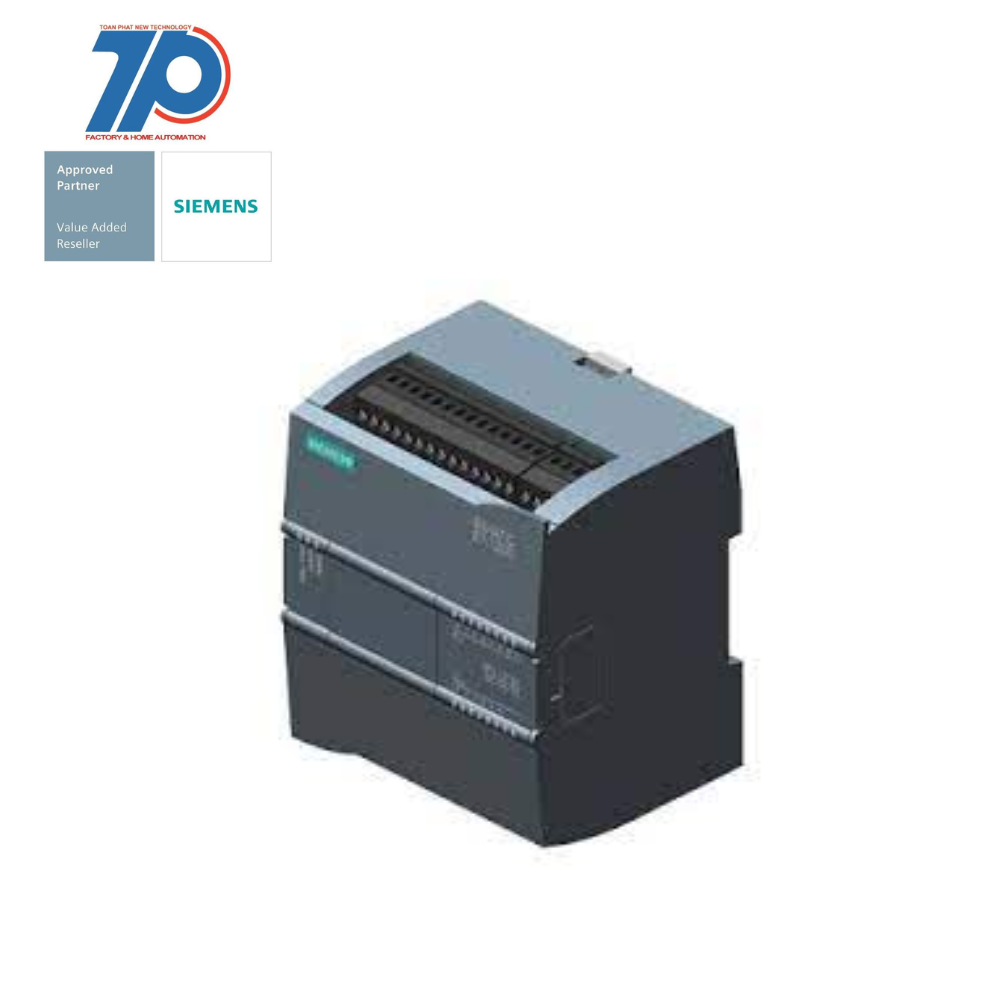

6ES7212-1AE31-0XB0 – CPU 1212C DC/DC/DC

1₫

--- Giá chưa bao gồm VAT ----

Giá có thể thay đổi, vui lòng liên hệ trước khi đặt hàng (Luôn có giá tốt khi mua số lượng nhiều)

Bảo hành 12 tháng khi mua tại TPNewtech.

Thời gian vận chuyển:
Thời gian giao hàng ước tính từ 1 - 5 ngày trên toàn quốc.

Luôn có chương trình hỗ trợ dự án công trình

-> Hãy Liên hệ ngay cho chúng tôi

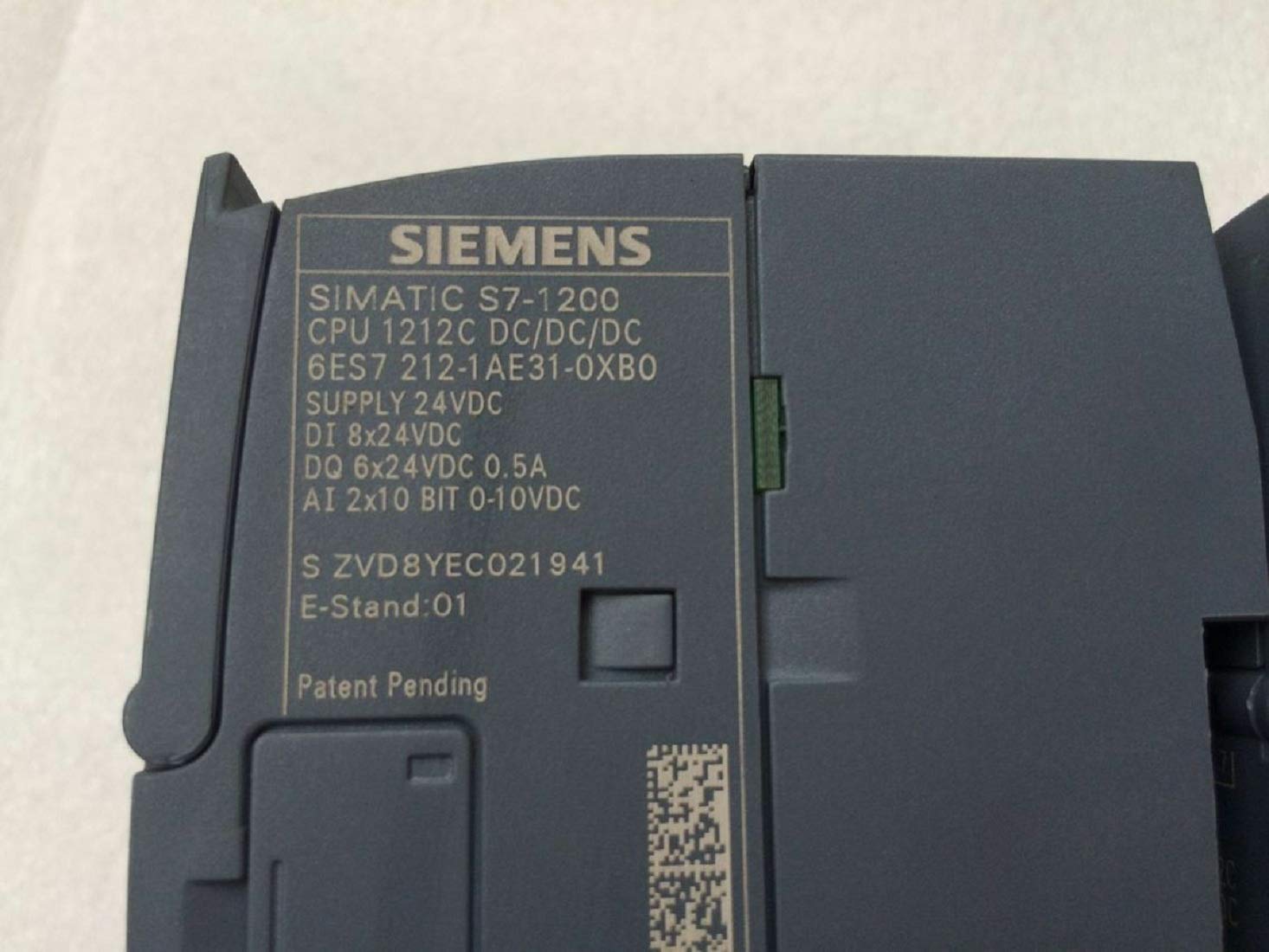

Material ID: 6ES7212-1AE31-0XB0

SIMATIC S7-1200, CPU 1212C, compact CPU, DC/DC/DC, onboard I/O: 8 DI 24 V DC; 6 DO 24 V DC; 2 AI 0-10 V DC
Power supply: DC 20.4-28.8V DC
Program/data memory 50 KB
SIMATIC S7-1200 Basic Controller – Flexible thanks to wide variety of communication options
The Basic Controllers are first choice for implementing automation tasks flexibly and efficiently in the mid to low performance range
The CPUs are scaled in their performance and available for different input voltages and with transistor or relay outputs
Safety versions are also available
In addition to the existing integrated inputs and outputs, the compact CPUs can be expanded directly on the device or with a wide variety of signal and communication modules in order to adapt them to your exact requirements
HMI devices can likewise be connected via the integrated Ethernet interface
The memory of the CPU can be expanded by means of a memory card, while the PLC is configured using the STEP 7 Basic software in the TIA Portal
The micro PLC has a wide range of networking options via various communication standards by means of integrated functions (PROFINET, Modbus, etc.) or add-on modules (IO-Link, AS-i, etc.) and thus offers maximum flexibility in the topology and when setting up the networks
Thanks to its compact design, the fields of application for the S7-1200 are very varied and extend from simple packaging machines and heating systems to its use as a subordinate control system in larger plants
Compact design, modular structure and integrated IOs help to save space in the control cabinet
The STEP 7 configuration software is integrated into the TIA Portal and can therefore rely on shared data storage, a uniform operating concept and integrated communication services for all components of a system
This means lower configuration costs and faster commissioning

Additional Information

SIMATIC S7-1200, CPU 1212C, compact CPU, DC/DC/DC, onboard I/O: 8 DI 24 V DC; 6 DO 24 V DC; 2 AI 0-10 V DC, Power supply: DC 20.4-28.8V DC, Program/data memory 50 KB

General information

Product type designation CPU 1212C DC/DC/DC

Engineering with

● Programming package STEP 7 V11 SP2 or higher

Supply voltage

Rated value (DC)

● 24 V DC Yes

permissible range, lower limit (DC) 20.4 V

permissible range, upper limit (DC) 28.8 V

Load voltage L+

● Rated value (DC) 24 V

● permissible range, lower limit (DC) 20.4 V

● permissible range, upper limit (DC) 28.8 V

Input current

Current consumption, max. 1.2 A; 24 V DC

Inrush current, max. 12 A; at 28.8 V DC

Output current

for backplane bus (5 V DC), max. 1 000 mA; Max. 5 V DC for SM and CM

Encoder supply

24 V encoder supply

● 24 V Permissible range: 20.4V to 28.8V

Power loss

Power loss, typ. 9 W

Memory

Work memory

● integrated 50 kbyte

● expandable No

Load memory

● integrated 1 Mbyte

Backup

● present Yes; maintenance-free

● without battery Yes

CPU processing times

for bit operations, typ. 0.085 µs; / instruction

for word operations, typ. 1.7 µs; / instruction

for floating point arithmetic, typ. 2.5 µs; / instruction

CPU-blocks

Number of blocks (total) DBs, FCs, FBs, counters and timers. The maximum number of addressable blocks ranges from 1 to 65535. There is no restriction, the entire working memory can be used

● Number, max. Limited only by RAM for code

Data areas and their retentivity

Retentive data area (incl. timers, counters, flags), max. 10 kbyte

Flag

● Number, max. 4 kbyte; Size of bit memory address area

Address area

I/O address area

● Inputs 1 024 byte

● Outputs 1 024 byte

Process image

● Inputs, adjustable 1 kbyte

● Outputs, adjustable 1 kbyte

Hardware configuration

Number of modules per system, max. 3 comm. modules, 1 signal board, 2 signal modules

Time of day

Clock

● Hardware clock (real-time) Yes

● Backup time 480 h; Typical

● Deviation per day, max. 60 s/month at 25 °C

Digital inputs

Number of digital inputs 8; Integrated

● of which inputs usable for technological functions 4; HSC (High Speed Counting)

Source/sink input Yes

Number of simultaneously controllable inputs

all mounting positions

— up to 40 °C, max. 8

Input voltage

● Rated value (DC) 24 V

● for signal “0” 5 V DC at 1 mA

● for signal “1” 15 V DC at 2.5 mA

Input current

● for signal “1”, typ. 1 mA

Input delay (for rated value of input voltage)

for standard inputs

— parameterizable 0.2 ms, 0.4 ms, 0.8 ms, 1.6 ms, 3.2 ms, 6.4 ms and 12.8 ms, selectable in groups of four

— at “0” to “1”, min. 0.2 ms

— at “0” to “1”, max. 12.8 ms

for interrupt inputs

— parameterizable Yes

for technological functions

— parameterizable Single phase: 3 @ 100 kHz & 1 @ 30 kHz, differential: 3 @ 80 kHz & 1 @ 30 kHz

Cable length

● shielded, max. 500 m; 50 m for technological functions

● unshielded, max. 300 m; for technological functions: No

Digital outputs

Number of digital outputs 6

● of which high-speed outputs 4; 100 kHz Pulse Train Output

Short-circuit protection No; to be provided externally

Limitation of inductive shutdown voltage to L+ (-48 V)

Switching capacity of the outputs

● with resistive load, max. 0.5 A

● on lamp load, max. 5 W

Output voltage

● for signal “0”, max. 0.1 V; with 10 kOhm load

● for signal “1”, min. 20 V

Output current

● for signal “1” rated value 0.5 A

● for signal “0” residual current, max. 0.1 mA

Output delay with resistive load

● “0” to “1”, max. 1 µs

● “1” to “0”, max. 5 µs

Switching frequency

● of the pulse outputs, with resistive load, max. 100 kHz

Relay outputs

● Number of relay outputs 0

Cable length

● shielded, max. 500 m

● unshielded, max. 150 m

Analog inputs

Number of analog inputs 2

Input ranges

● Voltage Yes

Input ranges (rated values), voltages

● 0 to +10 V Yes

— Input resistance (0 to 10 V) ≥100k ohms

Cable length

● shielded, max. 100 m; twisted and shielded

Analog outputs

Number of analog outputs 0

Sản phẩm liên quan: 6ES7212-1BE40-0XB0 , 6ES7212-1HE40-0XB0 , 6ES7212-1AE40-0XB0 , 6ES7212-1BE31-0XB0 , 6ES7212-1HE31-0XB0
