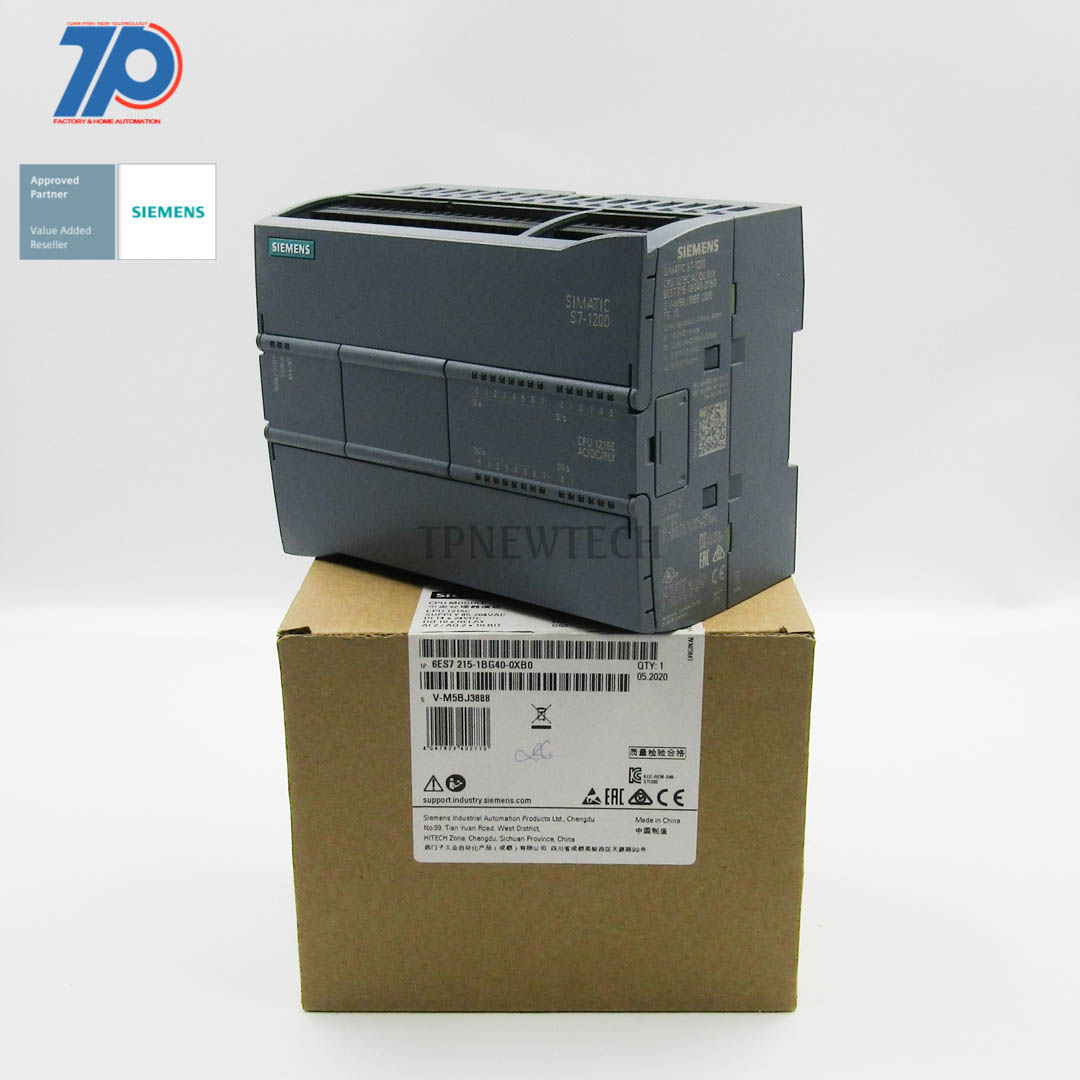

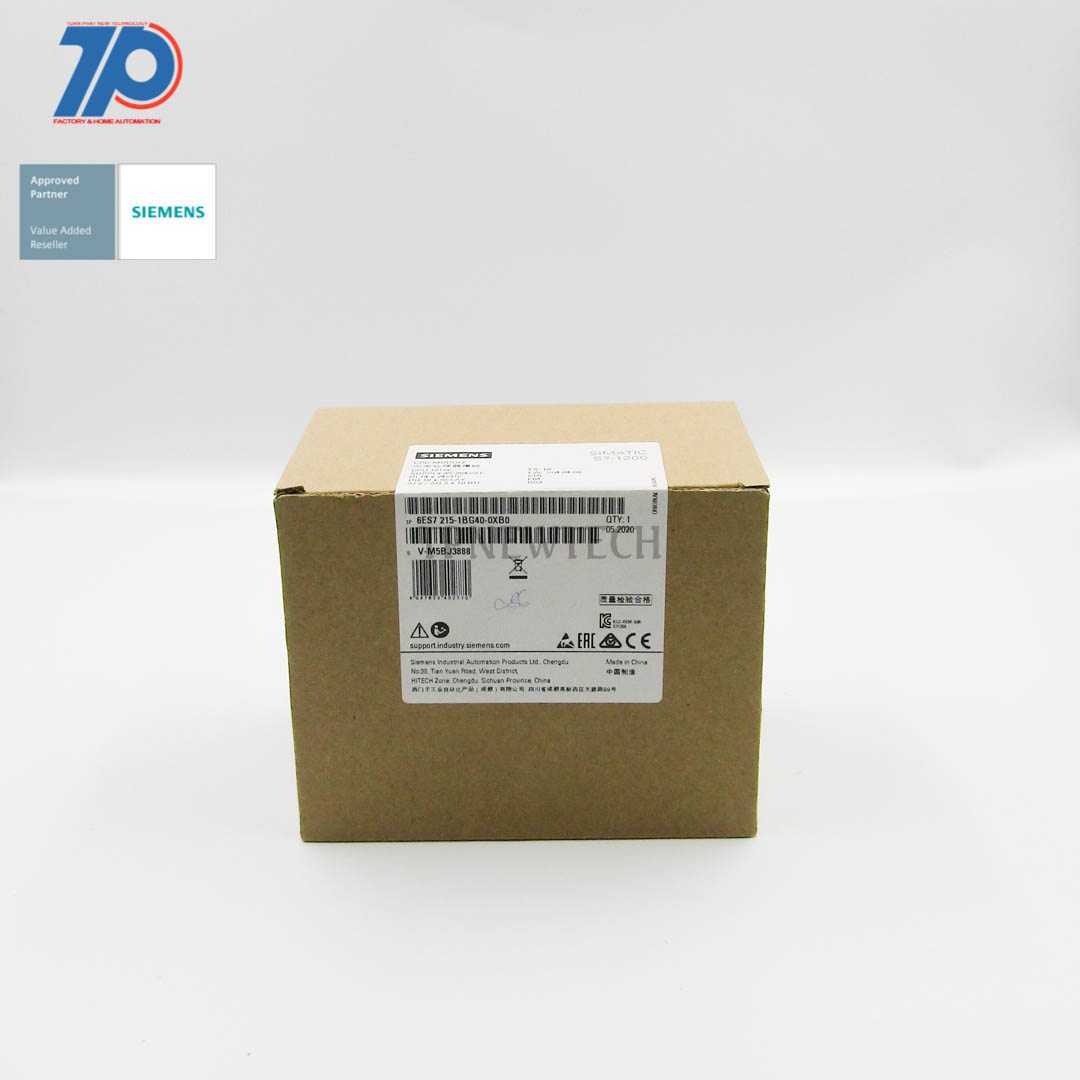

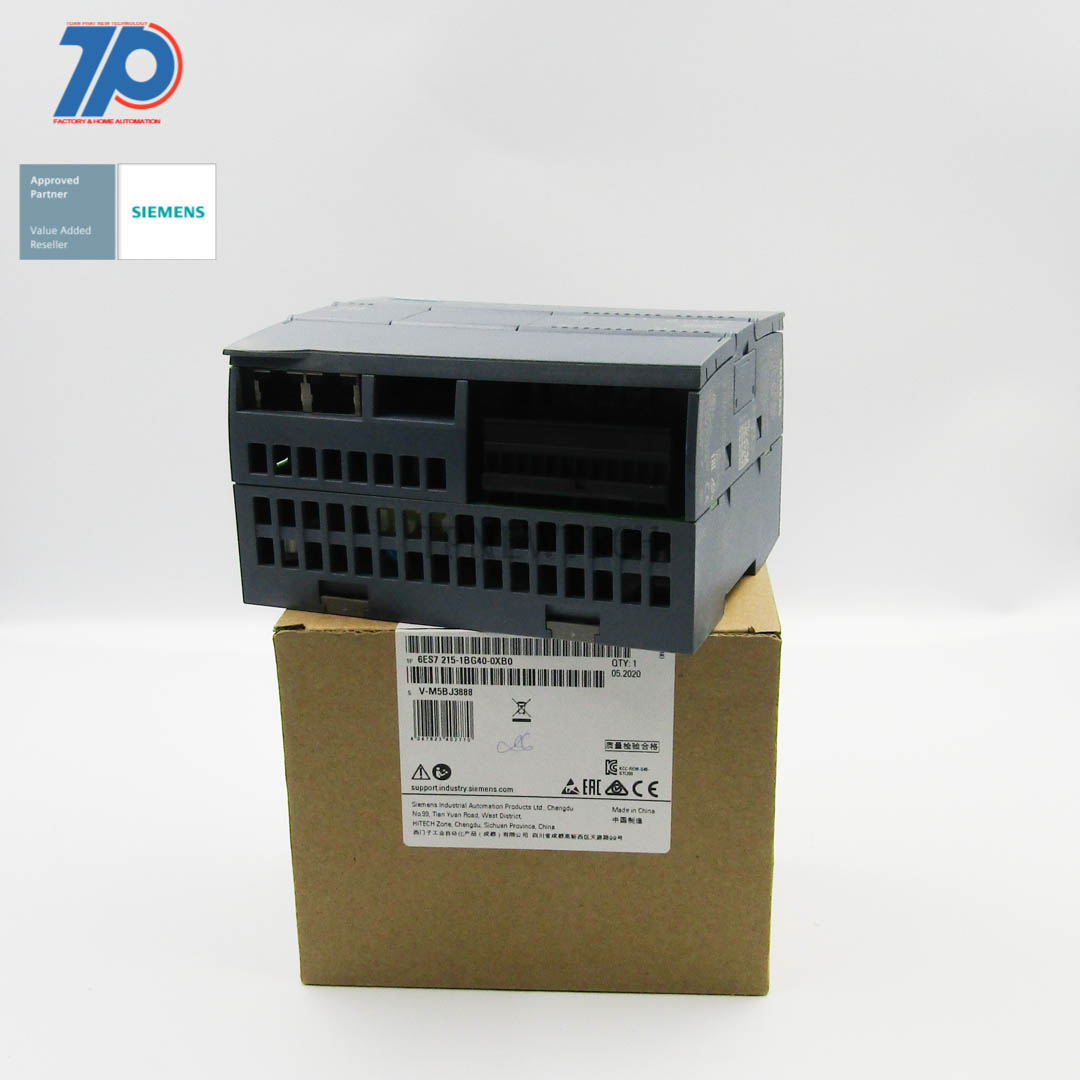

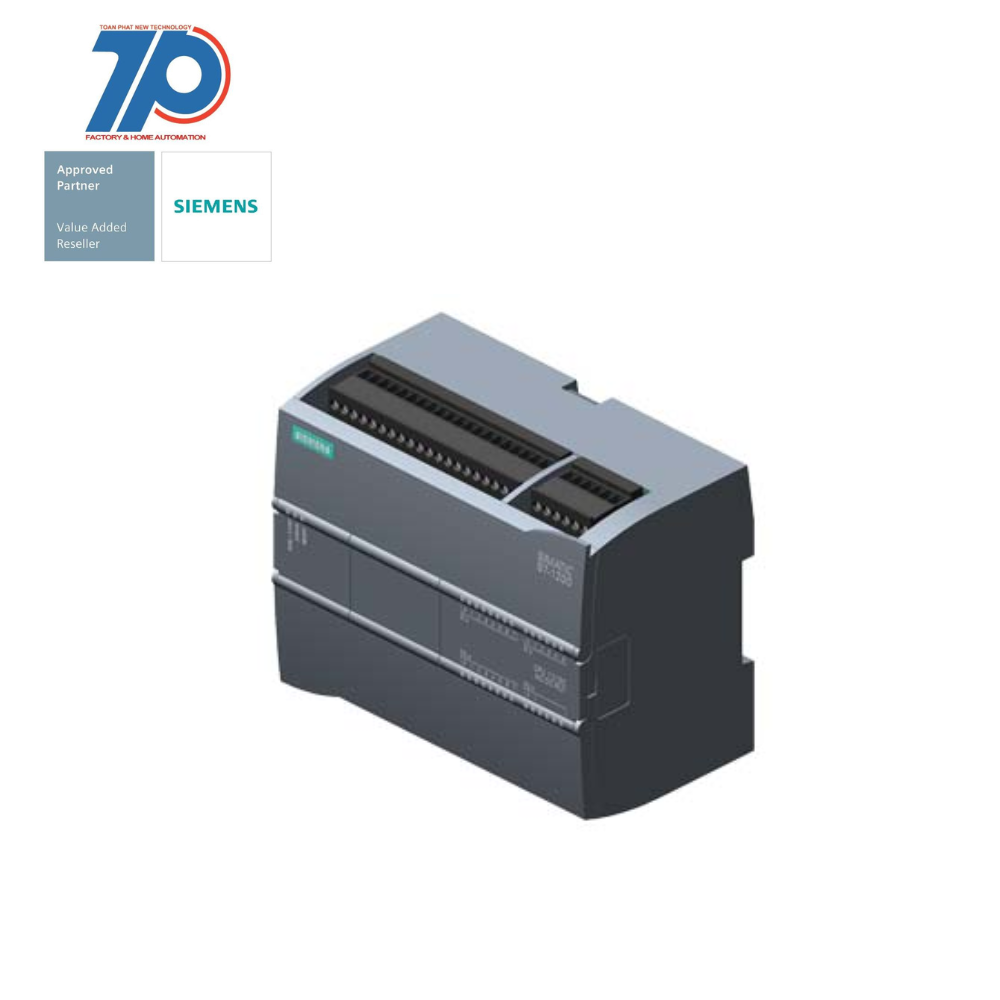

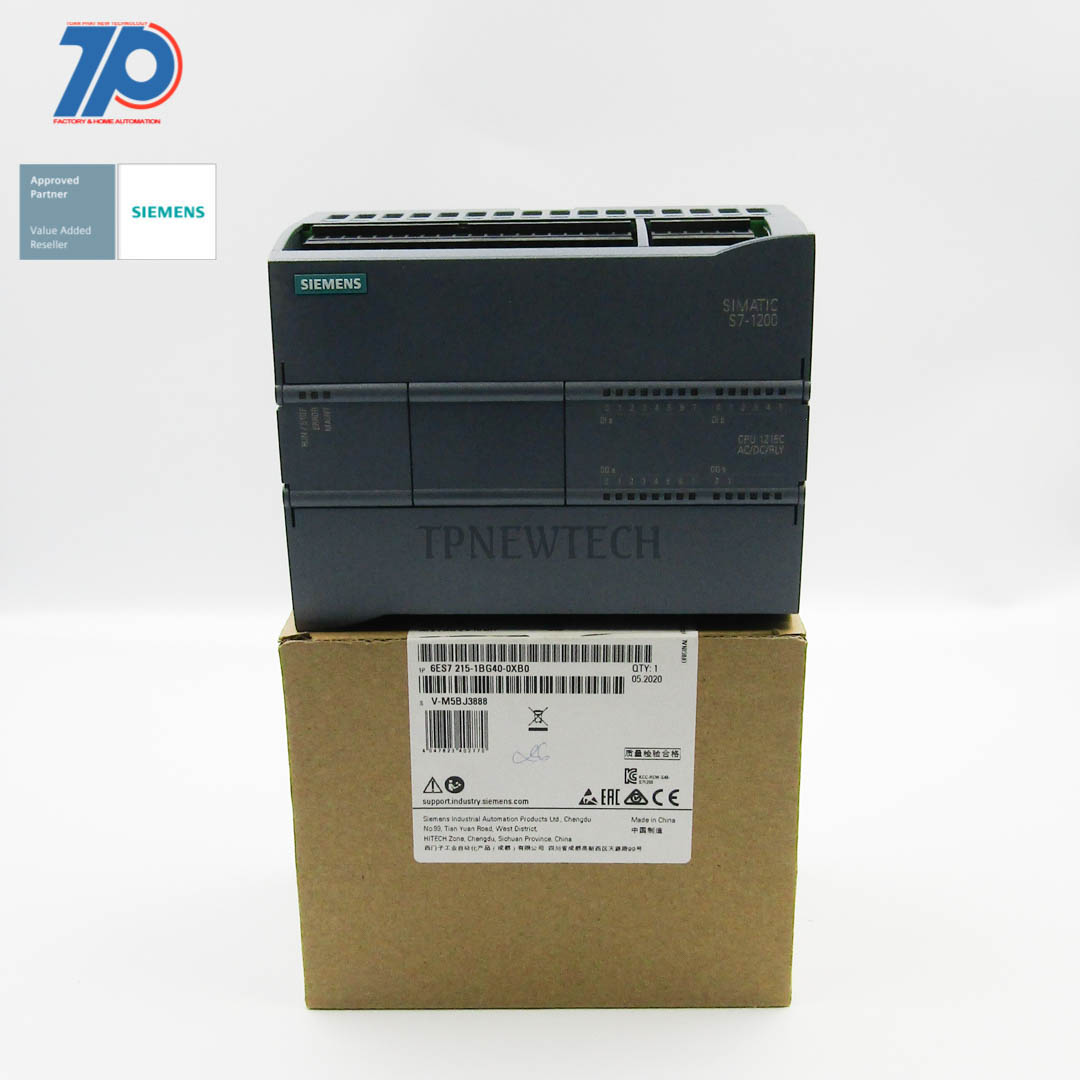

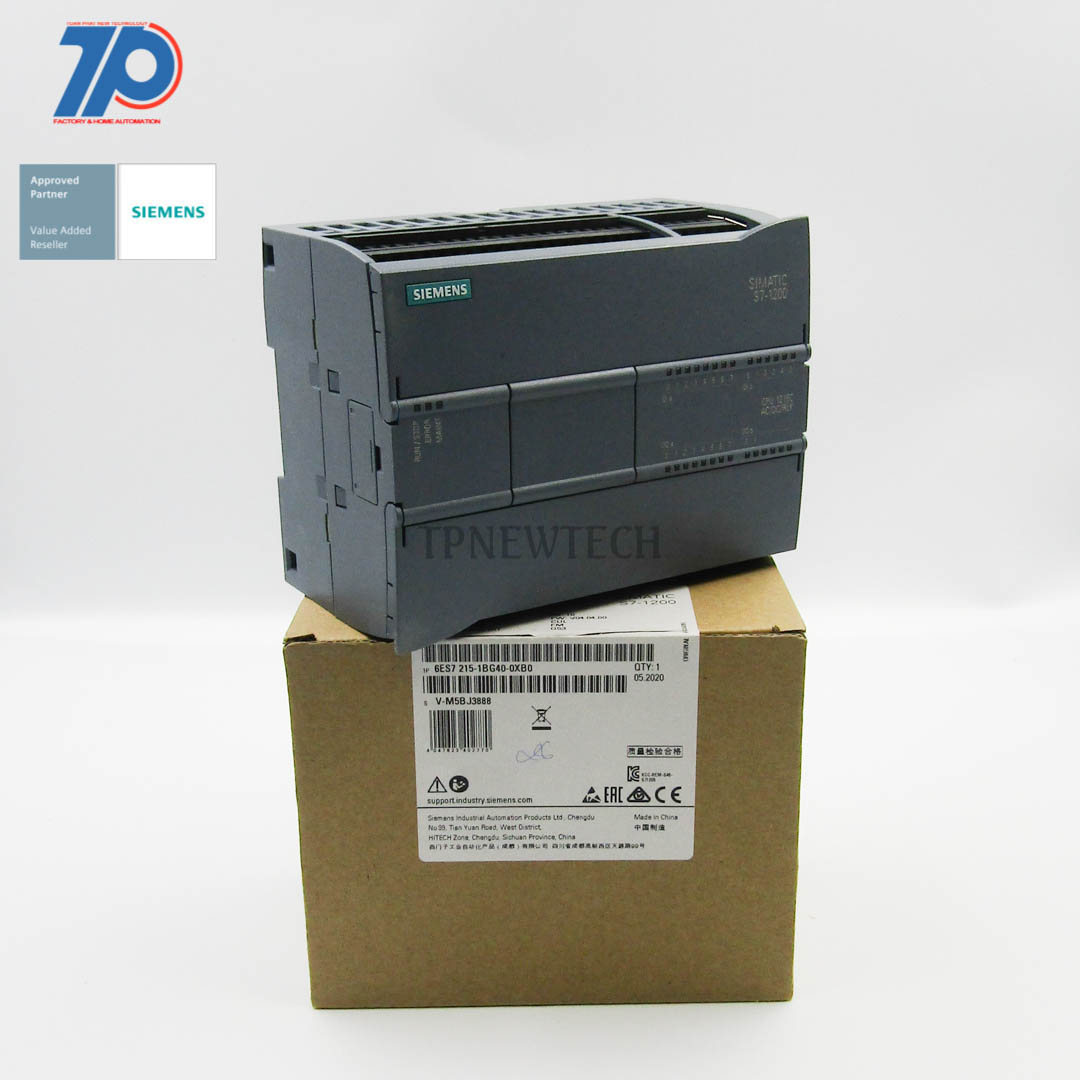

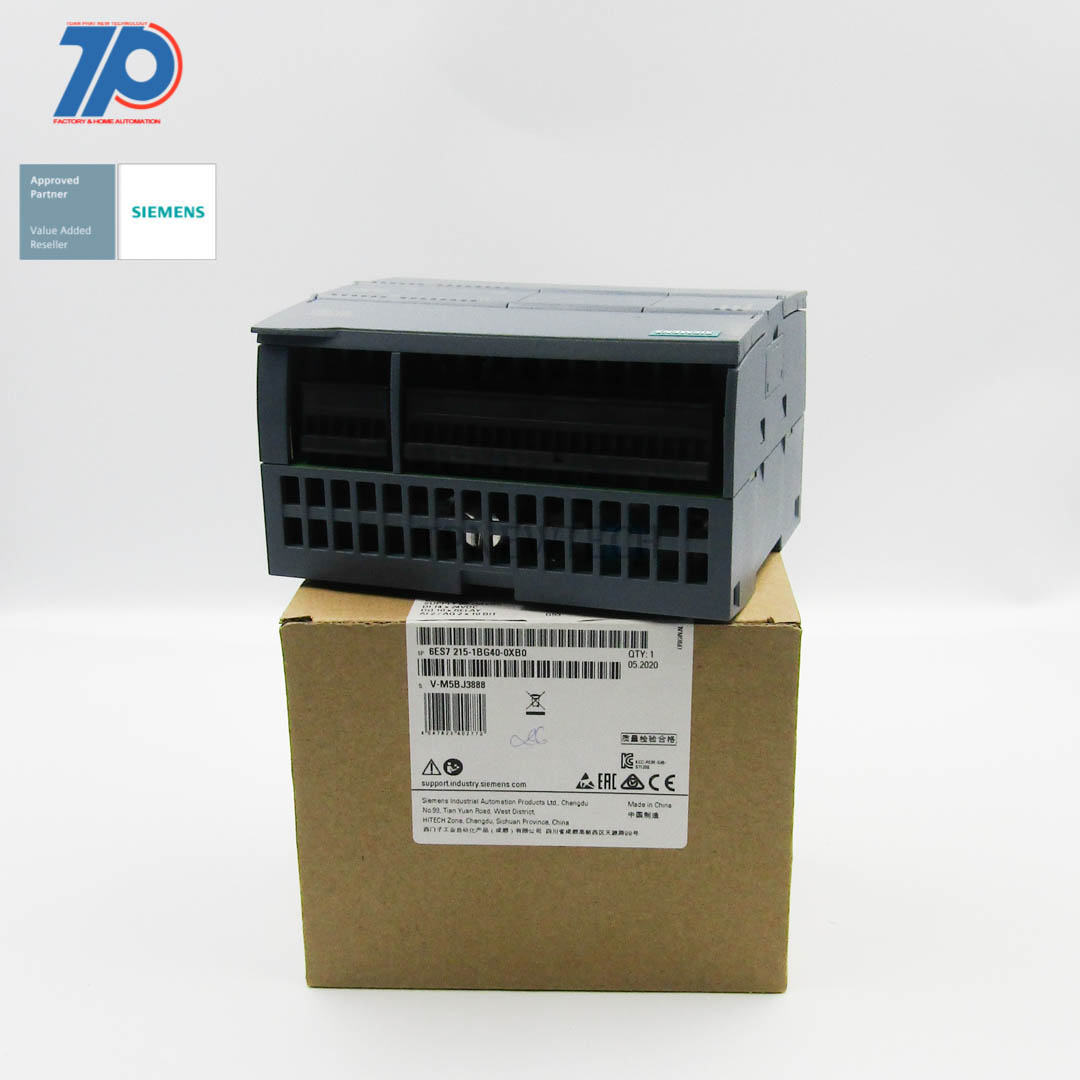

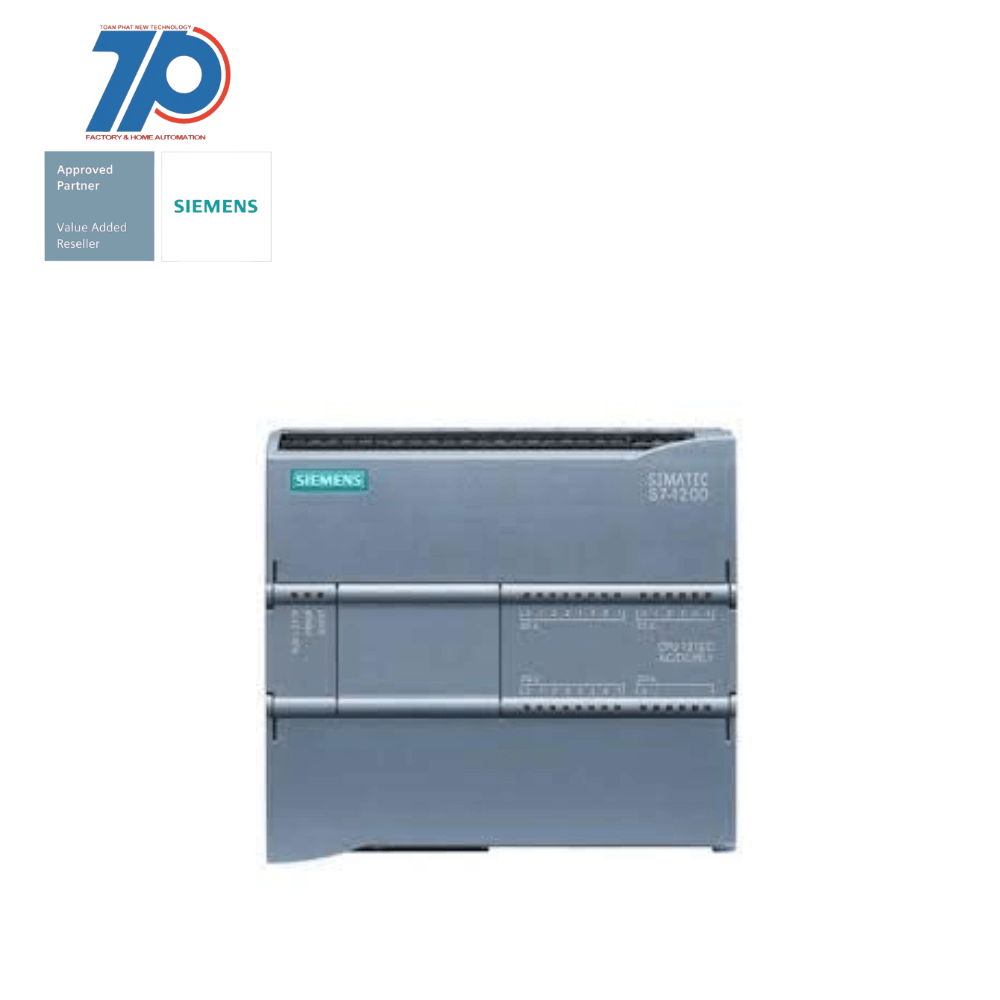

6ES7215-1BG40-0XB0 – CPU S7-1200 1215C AC Siemens

~~11,760,000₫~~ 7,670,000₫

--- Giá chưa bao gồm VAT ----

Giá có thể thay đổi, vui lòng liên hệ trước khi đặt hàng (Luôn có giá tốt khi mua số lượng nhiều)

Bảo hành 12 tháng khi mua tại TPNewtech.

Thời gian vận chuyển:
Thời gian giao hàng ước tính từ 1 - 5 ngày trên toàn quốc.

Luôn có chương trình hỗ trợ dự án công trình

-> Hãy Liên hệ ngay cho chúng tôi

Material ID: 6ES7215-1BG40-0XB0

SIMATIC S7-1200, CPU 1215C, compact CPU, AC/DC/relay, 2 PROFINET ports, onboard I/O: 14 DI 24 V DC; 10 DO relay 2 A, 2 AI 0-10 V DC, 2 AO 0-20 mA DC, power supply: AC 85-264 V AC at 47-63 Hz, program/data memory 200 KB

Additional Information

Support

Application Example
Industry Mall
Siemens Support Portal
Pictogram/Icon
Product Family View
Technical Support Link
FAQ

Technical Data

Manuals / Links

Mã: 6ES7215-1BG40-0XB0 Danh mục: Siemens, Thiết bị điện công nghiệp, Thiết bị tự động Siemens, PLC S7-1200 CHÍNH HÃNG SIEMENS Từ khóa: PLC S7-1200 SIEMENS Nhà cung cấp: TP Newtech

Mô tả
Thông tin bổ sung

SIMATIC S7-1200, CPU 1215C, compact CPU, AC/DC/relay, 2 PROFINET ports, onboard I/O: 14 DI 24 V DC; 10 DO relay 2 A, 2 AI 0-10 V DC, 2 AO 0-20 mA DC, Power supply: AC 85-264 V AC at 47-63 Hz, Program/data memory 125 KB

General information

Product type designation CPU 1215C AC/DC/relay

Firmware version V4.4

Engineering with

● Programming package STEP 7 V16 or higher

Supply voltage

Rated value (AC)

● 120 V AC Yes

● 230 V AC Yes

permissible range, lower limit (AC) 85 V

permissible range, upper limit (AC) 265 V

Line frequency

● permissible range, lower limit 47 Hz

● permissible range, upper limit 63 Hz

Input current

Current consumption (rated value) 100 mA at 120 V AC; 50 mA at 240 V AC

Current consumption, max. 300 mA at 120 V AC; 150 mA at 240 V AC

Inrush current, max. 20 A; at 264 V

I²t 0.8 A²·s

Output current

for backplane bus (5 V DC), max. 1 600 mA; Max. 5 V DC for SM and CM

Encoder supply

24 V encoder supply

● 24 V 20.4 to 28.8V

Power loss

Power loss, typ. 14 W

Memory

Work memory

● integrated 125 kbyte

● expandable No

Load memory

● integrated 4 Mbyte

● Plug-in (SIMATIC Memory Card), max. with SIMATIC memory card

Backup

● present Yes

● maintenance-free Yes

● without battery Yes

CPU processing times

for bit operations, typ. 0.08 µs; / instruction

for word operations, typ. 1.7 µs; / instruction

for floating point arithmetic, typ. 2.3 µs; / instruction

CPU-blocks

Number of blocks (total) DBs, FCs, FBs, counters and timers. The maximum number of addressable blocks ranges from 1 to 65535. There is no restriction, the entire working memory can be used

● Number, max. Limited only by RAM for code

Data areas and their retentivity

Retentive data area (incl. timers, counters, flags), max. 10 kbyte

Flag

● Number, max. 8 kbyte; Size of bit memory address area

Local data

● per priority class, max. 16 kbyte; Priority class 1 (program cycle): 16 KB, priority class 2 to 26: 6 KB

Address area

Process image

● Inputs, adjustable 1 kbyte

● Outputs, adjustable 1 kbyte

Hardware configuration

Number of modules per system, max. 3 comm. modules, 1 signal board, 8 signal modules

Time of day

Clock

● Hardware clock (real-time) Yes

● Backup time 480 h; Typical

● Deviation per day, max. ±60 s/month at 25 °C

Digital inputs

Number of digital inputs 14; Integrated

● of which inputs usable for technological functions 6; HSC (High Speed Counting)

Source/sink input Yes

Number of simultaneously controllable inputs

all mounting positions

— up to 40 °C, max. 14

Input voltage

● Rated value (DC) 24 V

● for signal “0” 5 V DC at 1 mA

● for signal “1” 15 V DC at 2.5 mA

Input delay (for rated value of input voltage)

for standard inputs

— parameterizable Yes; 0.2 ms, 0.4 ms, 0.8 ms, 1.6 ms, 3.2 ms, 6.4 ms and 12.8 ms, selectable in groups of four

— at “0” to “1”, min. 0.2 ms

— at “0” to “1”, max. 12.8 ms

for interrupt inputs

— parameterizable Yes

for technological functions

— parameterizable Single phase: 3 @ 100 kHz & 3 @ 30 kHz, differential: 3 @ 80 kHz & 3 @ 30 kHz

Cable length

● shielded, max. 500 m; 50 m for technological functions

● unshielded, max. 300 m; for technological functions: No

Digital outputs

Number of digital outputs 10; Relays

Switching capacity of the outputs

● with resistive load, max. 2 A

● on lamp load, max. 30 W with DC, 200 W with AC

Output delay with resistive load

● “0” to “1”, max. 10 ms; max.

● “1” to “0”, max. 10 ms; max.

Relay outputs

● Number of relay outputs 10

● Number of operating cycles, max. mechanically 10 million, at rated load voltage 100 000

Cable length

● shielded, max. 500 m

● unshielded, max. 150 m

Analog inputs

Number of analog inputs 2

Input ranges

● Voltage Yes

Input ranges (rated values), voltages

● 0 to +10 V Yes

— Input resistance (0 to 10 V) ≥100k ohms

Cable length

● shielded, max. 100 m; twisted and shielded

Analog outputs

Number of analog outputs 2

Output ranges, current

● 0 to 20 mA Yes

Analog value generation for the inputs

Integration and conversion time/resolution per channel

● Resolution with overrange (bit including sign), max. 10 bit

● Integration time, parameterizable Yes

● Conversion time (per channel) 625 µs

Encoder

Connectable encoders

● 2-wire sensor Yes

1. Interface

Interface type PROFINET

Physics Ethernet

Isolated Yes

automatic detection of transmission rate Yes

Autonegotiation Yes

Autocrossing Yes

Interface types

● Number of ports 2

● integrated switch Yes

Protocols

● PROFINET IO Controller Yes

● PROFINET IO Device Yes

● SIMATIC communication Yes

● Open IE communication Yes; Optionally also encrypted

● Web server Yes

● Media redundancy Yes; as MRP client

PROFINET IO Controller

● Transmission rate, max. 100 Mbit/s

Services

— PG/OP communication Yes

— S7 routing Yes

— Isochronous mode No

— IRT No

— MRP Yes; as MRP client

— MRPD No

— PROFIenergy No

— Prioritized startup Yes

— Number of IO devices with prioritized startup, max. 16

— Number of connectable IO Devices, max. 16

— Number of connectable IO Devices for RT, max. 16

— of which in line, max. 16

— Activation/deactivation of IO Devices Yes

— Number of IO Devices that can be simultaneously activated/deactivated, max. 8

— Updating time The minimum value of the update time also depends on the communication component set for PROFINET IO, on the number of IO devices and the quantity of configured user data.

PROFINET IO Device

Services

— PG/OP communication Yes

— S7 routing Yes

— Isochronous mode No

— IRT No

— MRP Yes; as MRP client

— MRPD No

— PROFIenergy Yes

— Shared device Yes

— Number of IO Controllers with shared device, max. 2

Protocols

Supports protocol for PROFINET IO Yes

PROFIBUS Yes; CM 1243-5 (master) or CM 1242-5 (slave) required

AS-Interface Yes; CM 1243-2 required

Protocols (Ethernet)

● TCP/IP Yes

● DHCP No

● SNMP Yes

● DCP Yes

● LLDP Yes

Open IE communication

● TCP/IP Yes

— Data length, max. 8 kbyte

● ISO-on-TCP (RFC1006) Yes

— Data length, max. 8 kbyte

● UDP Yes

— Data length, max. 1 472 byte

Web server

● supported Yes

● User-defined websites Yes

OPC UA

● Runtime license required Yes; “Basic” license required

● OPC UA Server Yes; Data access (read, write, subscribe), runtime license required

— Application authentication Available security policies: None, Basic128Rsa15, Basic256Rsa15, Basic256Sha256

— User authentication “anonymous” or by user name & password

— Number of sessions, max. 5

— Number of accessible variables, max. 1 000

— Number of subscriptions per session, max. 5

— Sampling interval, min. 100 ms

— Publishing interval, min. 200 ms

— Number of monitored items, max. 500

— Number of server interfaces, max. 2

— Number of nodes for user-defined server interfaces, max. 1 000

Further protocols

● MODBUS Yes

Communication functions

S7 communication

● supported Yes

● as server Yes

● as client Yes

● User data per job, max. See online help (S7 communication, user data size)

Number of connections

● overall 8 connections for open user communication (active or passive): TSEND_C, TRCV_C, TCON, TDISCON, TSEND and TRCV, 8 CPU/CPU connections (Client or Server) for GET/PUT data, 6 connections for dynamic assignment to GET/PUT or open user communication

Test commissioning functions

Status/control

● Status/control variable Yes

● Variables Inputs/outputs, memory bits, DBs, distributed I/Os, timers, counters

Forcing

● Forcing Yes

Diagnostic buffer

● present Yes

Traces

● Number of configurable Traces 2

● Memory size per trace, max. 512 kbyte

Interrupts/diagnostics/status information

Diagnostics indication LED

● RUN/STOP LED Yes

● ERROR LED Yes

● MAINT LED Yes

Integrated Functions

Number of counters 6

Counting frequency (counter) max. 100 kHz

Frequency measurement Yes

controlled positioning Yes

Number of position-controlled positioning axes, max. 8

Number of positioning axes via pulse-direction interface Up to 4 with SB 1222

PID controller Yes

Number of alarm inputs 4

Potential separation

Potential separation digital inputs

● Potential separation digital inputs 500V AC for 1 minute

● between the channels, in groups of 1

Potential separation digital outputs

● Potential separation digital outputs Relays

● between the channels No

● between the channels, in groups of 2

EMC

Interference immunity against discharge of static electricity

● Interference immunity against discharge of static electricity acc. to IEC 61000-4-2 Yes

— Test voltage at air discharge 8 kV

— Test voltage at contact discharge 6 kV

Interference immunity to cable-borne interference

● Interference immunity on supply lines acc. to IEC 61000-4-4 Yes

● Interference immunity on signal cables acc. to IEC 61000-4-4 Yes

Interference immunity against voltage surge

● Interference immunity on supply lines acc. to IEC 61000-4-5 Yes

Interference immunity against conducted variable disturbance induced by high-frequency fields

● Interference immunity against high-frequency radiation acc. to IEC 61000-4-6 Yes

Emission of radio interference acc. to EN 55 011

● Limit class A, for use in industrial areas Yes; Group 1

● Limit class B, for use in residential areas Yes; When appropriate measures are used to ensure compliance with the limits for Class B according to EN 55011

Degree and class of protection

IP degree of protection IP20

Standards, approvals, certificates

CE mark Yes

UL approval Yes

cULus Yes

FM approval Yes

RCM (formerly C-TICK) Yes

KC approval Yes

Marine approval Yes

Ambient conditions

Free fall

● Fall height, max. 0.3 m; five times, in product package

Ambient temperature during operation

● min. -20 °C

● max. 60 °C; Number of simultaneously activated inputs or outputs 7 or 5 (no adjacent points) at 60 °C horizontal or 50 °C vertical, 14 or 10 at 55 °C horizontal or 45 °C vertical

● horizontal installation, min. -20 °C

● horizontal installation, max. 60 °C

● vertical installation, min. -20 °C

● vertical installation, max. 50 °C

Ambient temperature during storage/transportation

● min. -40 °C

● max. 70 °C

Air pressure acc. to IEC 60068-2-13

● Operation, min. 795 hPa

● Operation, max. 1 080 hPa

● Storage/transport, min. 660 hPa

● Storage/transport, max. 1 080 hPa

Altitude during operation relating to sea level

● Installation altitude, min. -1 000 m

● Installation altitude, max. 2 000 m

Relative humidity

● Operation, max. 95 %; no condensation

Vibrations

● Vibration resistance during operation acc. to IEC 60068-2-6 2 g (m/s²) wall mounting, 1 g (m/s²) DIN rail

● Operation, tested according to IEC 60068-2-6 Yes

Shock testing

● tested according to IEC 60068-2-27 Yes; IEC 68, Part 2-27 half-sine: strength of the shock 15 g (peak value), duration 11 ms

Pollutant concentrations

● SO2 at RH < 60% without condensation S02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60% condensation-free

Configuration

Programming

Programming language

— LAD Yes

— FBD Yes

— SCL Yes

Know-how protection

● User program protection/password protection Yes

● Copy protection Yes

● Block protection Yes

Access protection

● Protection level: Write protection Yes

● Protection level: Read/write protection Yes

● Protection level: Complete protection Yes

Cycle time monitoring

● adjustable Yes

Dimensions

Width 130 mm

Height 100 mm

Depth 75 mm

Weights

Weight, approx. 550 g

Sản phẩm liên quan: 6ES7215-1AG40-0XB0 , 6ES7215-1BG31-0XB0 , 6ES7215-1HG31-0XB0 , 6ES7215-1AG31-0XB0

Trọng lượng	0.5 kg
Country of Origin	CN

HỖ TRỢ KỸ THUẬT

Đội ngũ kỹ thuật của chúng tôi luôn sẵn sàng tư vấn và hướng dẫn quý khách sửa chữa bảo trì hay bất cứ điều gì liên quan đến sản phẩm.

Thời gian bảo hành 12 tháng
THEO TIÊU CHUẨN NHÀ SẢN XUẤT

Áp dụng cho tất cả các sản phẩm đang kinh doanh tại www.tpnewtech.com

Chính sách đổi trả:

Khách hàng có quyền ĐỔI sản phẩm khác hoặc TRẢ sản phẩm và lấy lại tiền với chi tiết như sau:

+ Đổi trả sản phẩm bị lỗi (Do nhà sản xuất ): sau 24 giờ kề từ khi ký xác nhận trong “ Biên bản giao nhận” : ĐỔI TRẢ MIỄN PHÍ HOẶC HOÀN TIỀN ( không bao gồm phí vận chuyển )

+ Sản phẩm “Không bị lỗi” hoặc “Bị lỗi” do NGƯỜI SỬ DỤNG: Không áp dụng đổi trả hoặc khách hàng chịu chi phí sửa chữa.

Điều kiện đổi trả:

– Còn hóa đơn mua hàng

– Còn đầy đủ hộp sản phẩm

– Còn đầy đủ phiếu bảo hành (nếu có) và phụ kiện đi kèm

– Quà khuyến mãi có giá trị (nếu có)

– Trường hợp thiếu các điều kiện trên: thu phí theo qui định. Ngoài ra, KHÔNG thu thêm bất kỳ phí nào khác

– Tem bảo hành còn nguyên: không bị rách hoặc mờ

Đánh giá

Chưa có đánh giá nào.

Hãy là người đầu tiên nhận xét “6ES7215-1BG40-0XB0 – CPU S7-1200 1215C AC Siemens” Hủy

Chi Tiết Sản Phẩm

Material ID: 6ES7215-1BG40-0XB0

Additional Information

Support

Application Example
Industry Mall
Siemens Support Portal
Pictogram/Icon
Product Family View
Technical Support Link
FAQ

Technical Data

Manuals / Links

Mô tả
Thông tin bổ sung

General information

Product type designation CPU 1215C AC/DC/relay

Firmware version V4.4

Engineering with

● Programming package STEP 7 V16 or higher

Supply voltage

Rated value (AC)

● 120 V AC Yes

● 230 V AC Yes

permissible range, lower limit (AC) 85 V

permissible range, upper limit (AC) 265 V

Line frequency

● permissible range, lower limit 47 Hz

● permissible range, upper limit 63 Hz

Input current

Current consumption (rated value) 100 mA at 120 V AC; 50 mA at 240 V AC

Current consumption, max. 300 mA at 120 V AC; 150 mA at 240 V AC

Inrush current, max. 20 A; at 264 V

I²t 0.8 A²·s

Output current

for backplane bus (5 V DC), max. 1 600 mA; Max. 5 V DC for SM and CM

Encoder supply

24 V encoder supply

● 24 V 20.4 to 28.8V

Power loss

Power loss, typ. 14 W

Memory

Work memory

● integrated 125 kbyte

● expandable No

Load memory

● integrated 4 Mbyte

● Plug-in (SIMATIC Memory Card), max. with SIMATIC memory card

Backup

● present Yes

● maintenance-free Yes

● without battery Yes

CPU processing times

for bit operations, typ. 0.08 µs; / instruction

for word operations, typ. 1.7 µs; / instruction

for floating point arithmetic, typ. 2.3 µs; / instruction

CPU-blocks

Number of blocks (total) DBs, FCs, FBs, counters and timers. The maximum number of addressable blocks ranges from 1 to 65535. There is no restriction, the entire working memory can be used

● Number, max. Limited only by RAM for code

Data areas and their retentivity

Retentive data area (incl. timers, counters, flags), max. 10 kbyte

Flag

● Number, max. 8 kbyte; Size of bit memory address area

Local data

● per priority class, max. 16 kbyte; Priority class 1 (program cycle): 16 KB, priority class 2 to 26: 6 KB

Address area

Process image

● Inputs, adjustable 1 kbyte

● Outputs, adjustable 1 kbyte

Hardware configuration

Number of modules per system, max. 3 comm. modules, 1 signal board, 8 signal modules

Time of day

Clock

● Hardware clock (real-time) Yes

● Backup time 480 h; Typical

● Deviation per day, max. ±60 s/month at 25 °C

Digital inputs

Number of digital inputs 14; Integrated

● of which inputs usable for technological functions 6; HSC (High Speed Counting)

Source/sink input Yes

Number of simultaneously controllable inputs

all mounting positions

— up to 40 °C, max. 14

Input voltage

● Rated value (DC) 24 V

● for signal “0” 5 V DC at 1 mA

● for signal “1” 15 V DC at 2.5 mA

Input delay (for rated value of input voltage)

for standard inputs

— parameterizable Yes; 0.2 ms, 0.4 ms, 0.8 ms, 1.6 ms, 3.2 ms, 6.4 ms and 12.8 ms, selectable in groups of four

— at “0” to “1”, min. 0.2 ms

— at “0” to “1”, max. 12.8 ms

for interrupt inputs

— parameterizable Yes

for technological functions

— parameterizable Single phase: 3 @ 100 kHz & 3 @ 30 kHz, differential: 3 @ 80 kHz & 3 @ 30 kHz

Cable length

● shielded, max. 500 m; 50 m for technological functions

● unshielded, max. 300 m; for technological functions: No

Digital outputs

Number of digital outputs 10; Relays

Switching capacity of the outputs

● with resistive load, max. 2 A

● on lamp load, max. 30 W with DC, 200 W with AC

Output delay with resistive load

● “0” to “1”, max. 10 ms; max.

● “1” to “0”, max. 10 ms; max.

Relay outputs

● Number of relay outputs 10

● Number of operating cycles, max. mechanically 10 million, at rated load voltage 100 000

Cable length

● shielded, max. 500 m

● unshielded, max. 150 m

Analog inputs

Number of analog inputs 2

Input ranges

● Voltage Yes

Input ranges (rated values), voltages

● 0 to +10 V Yes

— Input resistance (0 to 10 V) ≥100k ohms

Cable length

● shielded, max. 100 m; twisted and shielded

Analog outputs

Number of analog outputs 2

Output ranges, current

● 0 to 20 mA Yes

Analog value generation for the inputs

Integration and conversion time/resolution per channel

● Resolution with overrange (bit including sign), max. 10 bit

● Integration time, parameterizable Yes

● Conversion time (per channel) 625 µs

Encoder

Connectable encoders

● 2-wire sensor Yes

1. Interface

Interface type PROFINET

Physics Ethernet

Isolated Yes

automatic detection of transmission rate Yes

Autonegotiation Yes

Autocrossing Yes

Interface types

● Number of ports 2

● integrated switch Yes

Protocols

● PROFINET IO Controller Yes

● PROFINET IO Device Yes

● SIMATIC communication Yes

● Open IE communication Yes; Optionally also encrypted

● Web server Yes

● Media redundancy Yes; as MRP client

PROFINET IO Controller

● Transmission rate, max. 100 Mbit/s

Services

— PG/OP communication Yes

— S7 routing Yes

— Isochronous mode No

— IRT No

— MRP Yes; as MRP client

— MRPD No

— PROFIenergy No

— Prioritized startup Yes

— Number of IO devices with prioritized startup, max. 16

— Number of connectable IO Devices, max. 16

— Number of connectable IO Devices for RT, max. 16

— of which in line, max. 16

— Activation/deactivation of IO Devices Yes

— Number of IO Devices that can be simultaneously activated/deactivated, max. 8

— Updating time The minimum value of the update time also depends on the communication component set for PROFINET IO, on the number of IO devices and the quantity of configured user data.

PROFINET IO Device

Services

— PG/OP communication Yes

— S7 routing Yes

— Isochronous mode No

— IRT No

— MRP Yes; as MRP client

— MRPD No

— PROFIenergy Yes

— Shared device Yes

— Number of IO Controllers with shared device, max. 2

Protocols

Supports protocol for PROFINET IO Yes

PROFIBUS Yes; CM 1243-5 (master) or CM 1242-5 (slave) required

AS-Interface Yes; CM 1243-2 required

Protocols (Ethernet)

● TCP/IP Yes

● DHCP No

● SNMP Yes

● DCP Yes

● LLDP Yes

Open IE communication

● TCP/IP Yes

— Data length, max. 8 kbyte

● ISO-on-TCP (RFC1006) Yes

— Data length, max. 8 kbyte

● UDP Yes

— Data length, max. 1 472 byte

Web server

● supported Yes

● User-defined websites Yes

OPC UA

● Runtime license required Yes; “Basic” license required

● OPC UA Server Yes; Data access (read, write, subscribe), runtime license required

— Application authentication Available security policies: None, Basic128Rsa15, Basic256Rsa15, Basic256Sha256

— User authentication “anonymous” or by user name & password

— Number of sessions, max. 5

— Number of accessible variables, max. 1 000

— Number of subscriptions per session, max. 5

— Sampling interval, min. 100 ms

— Publishing interval, min. 200 ms

— Number of monitored items, max. 500

— Number of server interfaces, max. 2

— Number of nodes for user-defined server interfaces, max. 1 000

Further protocols

● MODBUS Yes

Communication functions

S7 communication

● supported Yes

● as server Yes

● as client Yes

● User data per job, max. See online help (S7 communication, user data size)

Number of connections

Test commissioning functions

Status/control

● Status/control variable Yes

● Variables Inputs/outputs, memory bits, DBs, distributed I/Os, timers, counters

Forcing

● Forcing Yes

Diagnostic buffer

● present Yes

Traces

● Number of configurable Traces 2

● Memory size per trace, max. 512 kbyte

Interrupts/diagnostics/status information

Diagnostics indication LED

● RUN/STOP LED Yes

● ERROR LED Yes

● MAINT LED Yes

Integrated Functions

Number of counters 6

Counting frequency (counter) max. 100 kHz

Frequency measurement Yes

controlled positioning Yes

Number of position-controlled positioning axes, max. 8

Number of positioning axes via pulse-direction interface Up to 4 with SB 1222

PID controller Yes

Number of alarm inputs 4

Potential separation

Potential separation digital inputs

● Potential separation digital inputs 500V AC for 1 minute

● between the channels, in groups of 1

Potential separation digital outputs

● Potential separation digital outputs Relays

● between the channels No

● between the channels, in groups of 2

EMC

Interference immunity against discharge of static electricity

● Interference immunity against discharge of static electricity acc. to IEC 61000-4-2 Yes

— Test voltage at air discharge 8 kV

— Test voltage at contact discharge 6 kV

Interference immunity to cable-borne interference

● Interference immunity on supply lines acc. to IEC 61000-4-4 Yes

● Interference immunity on signal cables acc. to IEC 61000-4-4 Yes

Interference immunity against voltage surge

● Interference immunity on supply lines acc. to IEC 61000-4-5 Yes

Interference immunity against conducted variable disturbance induced by high-frequency fields

● Interference immunity against high-frequency radiation acc. to IEC 61000-4-6 Yes

Emission of radio interference acc. to EN 55 011

● Limit class A, for use in industrial areas Yes; Group 1

● Limit class B, for use in residential areas Yes; When appropriate measures are used to ensure compliance with the limits for Class B according to EN 55011

Degree and class of protection

IP degree of protection IP20

Standards, approvals, certificates

CE mark Yes

UL approval Yes

cULus Yes

FM approval Yes

RCM (formerly C-TICK) Yes

KC approval Yes

Marine approval Yes

Ambient conditions

Free fall

● Fall height, max. 0.3 m; five times, in product package

Ambient temperature during operation

● min. -20 °C

● max. 60 °C; Number of simultaneously activated inputs or outputs 7 or 5 (no adjacent points) at 60 °C horizontal or 50 °C vertical, 14 or 10 at 55 °C horizontal or 45 °C vertical

● horizontal installation, min. -20 °C

● horizontal installation, max. 60 °C

● vertical installation, min. -20 °C

● vertical installation, max. 50 °C

Ambient temperature during storage/transportation

● min. -40 °C

● max. 70 °C

Air pressure acc. to IEC 60068-2-13

● Operation, min. 795 hPa

● Operation, max. 1 080 hPa

● Storage/transport, min. 660 hPa

● Storage/transport, max. 1 080 hPa

Altitude during operation relating to sea level

● Installation altitude, min. -1 000 m

● Installation altitude, max. 2 000 m

Relative humidity

● Operation, max. 95 %; no condensation

Vibrations

● Vibration resistance during operation acc. to IEC 60068-2-6 2 g (m/s²) wall mounting, 1 g (m/s²) DIN rail

● Operation, tested according to IEC 60068-2-6 Yes

Shock testing

● tested according to IEC 60068-2-27 Yes; IEC 68, Part 2-27 half-sine: strength of the shock 15 g (peak value), duration 11 ms

Pollutant concentrations

● SO2 at RH < 60% without condensation S02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60% condensation-free

Configuration

Programming

Programming language

— LAD Yes

— FBD Yes

— SCL Yes

Know-how protection

● User program protection/password protection Yes

● Copy protection Yes

● Block protection Yes

Access protection

● Protection level: Write protection Yes

● Protection level: Read/write protection Yes

● Protection level: Complete protection Yes

Cycle time monitoring

● adjustable Yes

Dimensions

Width 130 mm

Height 100 mm

Depth 75 mm

Weights

Weight, approx. 550 g

Sản phẩm liên quan: 6ES7215-1AG40-0XB0 , 6ES7215-1BG31-0XB0 , 6ES7215-1HG31-0XB0 , 6ES7215-1AG31-0XB0

Trọng lượng	0.5 kg
Country of Origin	CN

Đại Lý Cung Cấp Thiết Bị Điện Tự Động - SIEMENS ĐỨC

Tất cả thiết bị điện – điện tự động SIEMENS cung cấp đến Khách Hàng như S7-1200, S7-1500, HMI, biến tần,… đều được nhập mẫu mã mới nhất từ Đức về Việt Nam.
Tại TPNewtech, chúng tôi còn hỗ trợ tư vấn và cung cấp giải pháp tốt và tiết kiệm chi phí nhất đến Khách Hàng.
