6AG1215-1HG40-2XB0

Material ID: 6AG1215-1HG40-2XB0

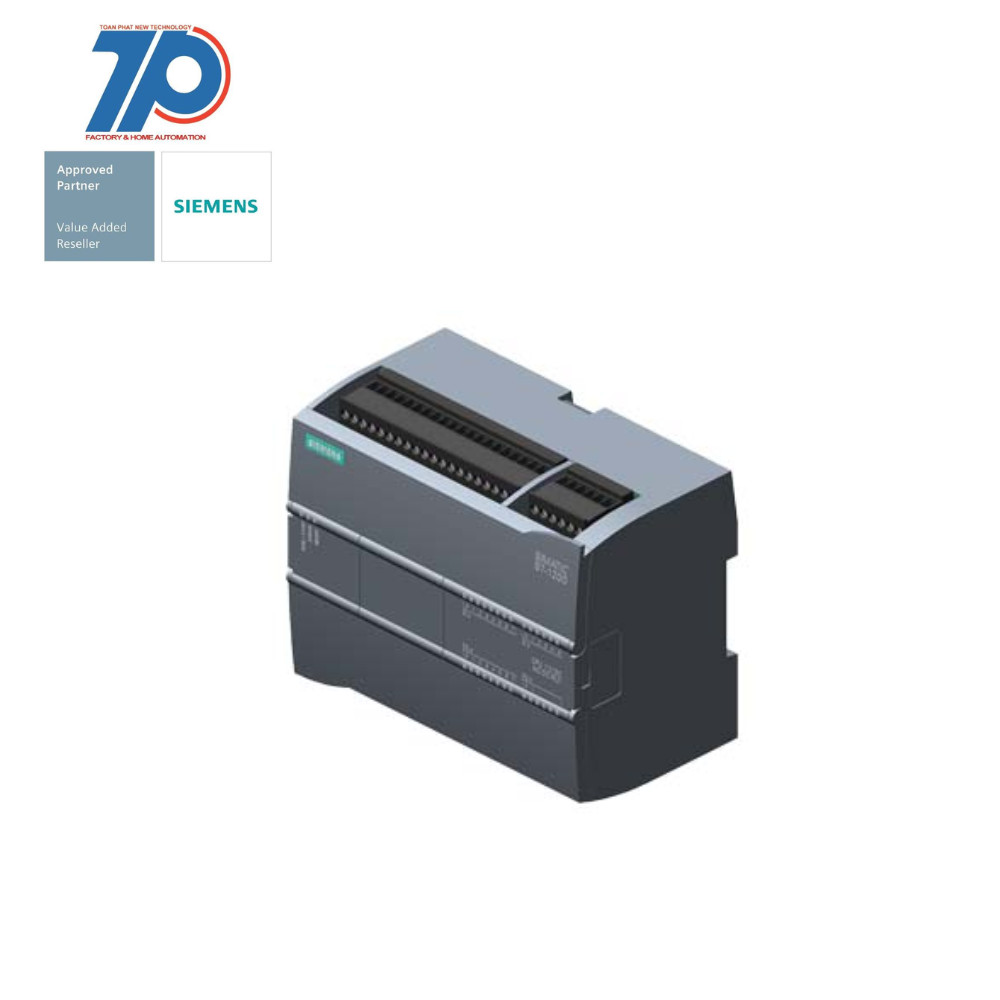

• SIPLUS S7-1200 CPU 1215C DC/DC/relay based on 6ES7215-1HG40-0XB0 with conformal coating, -40…+70 °C, start up -25 °C, signal board: 0
• Compact CPU, DC/DC/relay, 2 PROFINET ports
• Onboard I/O: 14 DI 24 V DC 10 DQ relay 2 A, 2 AI 0-10 V DC 2 AQ 0-20 mA DC
• Power supply: DC 20.4-28.8 V DC
• Program/data memory 125 KB SIMATIC S7-1200 Basic Controller
• Flexible thanks to wide variety of communication options
• The Basic Controllers are first choice for implementing automation tasks flexibly and efficiently in the mid to low performance range
• The CPUs are scaled in their performance and available for different input voltages and with transistor or relay outputs
• Safety versions are also available
• The compact CPUs can be expanded directly on the device or with a wide variety of signal and communication modules
• HMI devices can likewise be connected via the integrated Ethernet interface
• The memory of the CPU can be expanded by means of a memory card
• The PLC is configured using the STEP 7 Basic software in the TIA Portal
• The micro PLC has a wide range of networking options via various communication standards
• Integrated functions (PROFINET, Modbus, etc.) or add-on modules (IO-Link, AS-i, etc.)
• Offers maximum flexibility in the topology and when setting up the networks
• Fields of application for the S7-1200 are very varied
• Extend from simple packaging machines and heating systems to its use as a subordinate control system in larger plants
• Compact design, modular structure and integrated IOs help to save space in the control cabinet
• The STEP 7 configuration software is integrated into the TIA Portal
• Lower configuration costs and faster commissioning
• The SIPLUS extreme variant also protects the automation system components against harsh ambient conditions
• Such as extremely high and low temperatures, corrosive gases, condensation, frost and biologically, chemically and physically active substances
