6ED1055-5MC08-0BA1

Material ID: 6ED1055-5MC08-0BA1

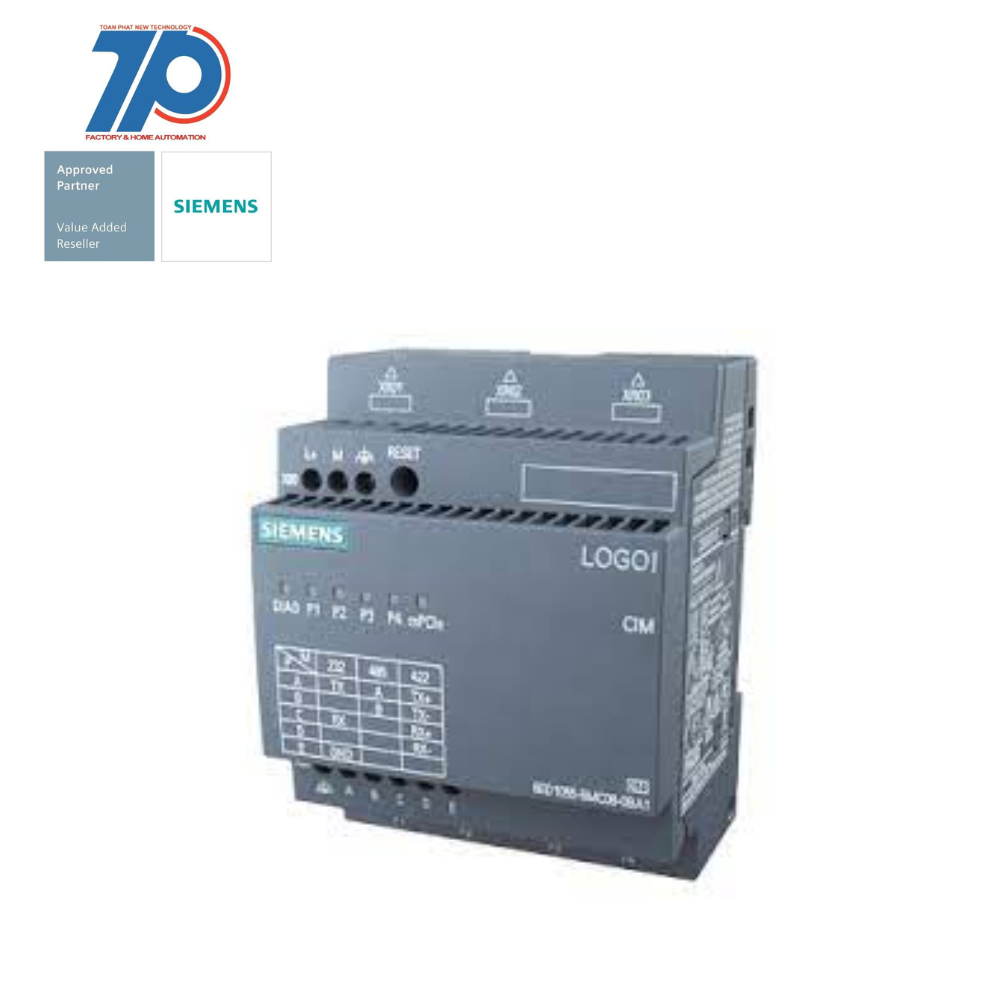

• LOGO! CIM Communication Interface Module for LOGO! 8
• Modbus RTU interface (RS232/485)
• 4-port switch; without 4G/LTE/GPS engine; without antennas; web configurator
• The LOGO! CIM communications module is an expansion module to the LOGO! 8 logic module and unifies numerous communication protocols in one device in a space-saving manner.
• A 4-port switch for connecting other devices via Ethernet is integrated into the enclosure, a Modbus RTU and TCP interface enables the connection of corresponding sensors.
• Also integrated are a SIM card slot (4G/LTE) and an mPCIe slot for 4G/LTE module engines.
• This makes it possible to communicate e.g. to the AWS cloud, even if there is no LAN infrastructure.
• The NTP function and the GPS receiver, which can be extended via mPCIe, are the prerequisites for time synchronization and the acquisition of position data.
• In order to achieve full functionality, especially in the mobile communications sector, the CIM module can be extended by antennas and a 4G/LTE engine.
• Tested engines are available for the frequency ranges of different regions, so that the module can be used almost globally.
• Details on the proposed antennas and LTE engines can be found in the CIM module manual.
