6ES7193-6AG40-0AA0

Material ID: 6ES7193-6AG40-0AA0

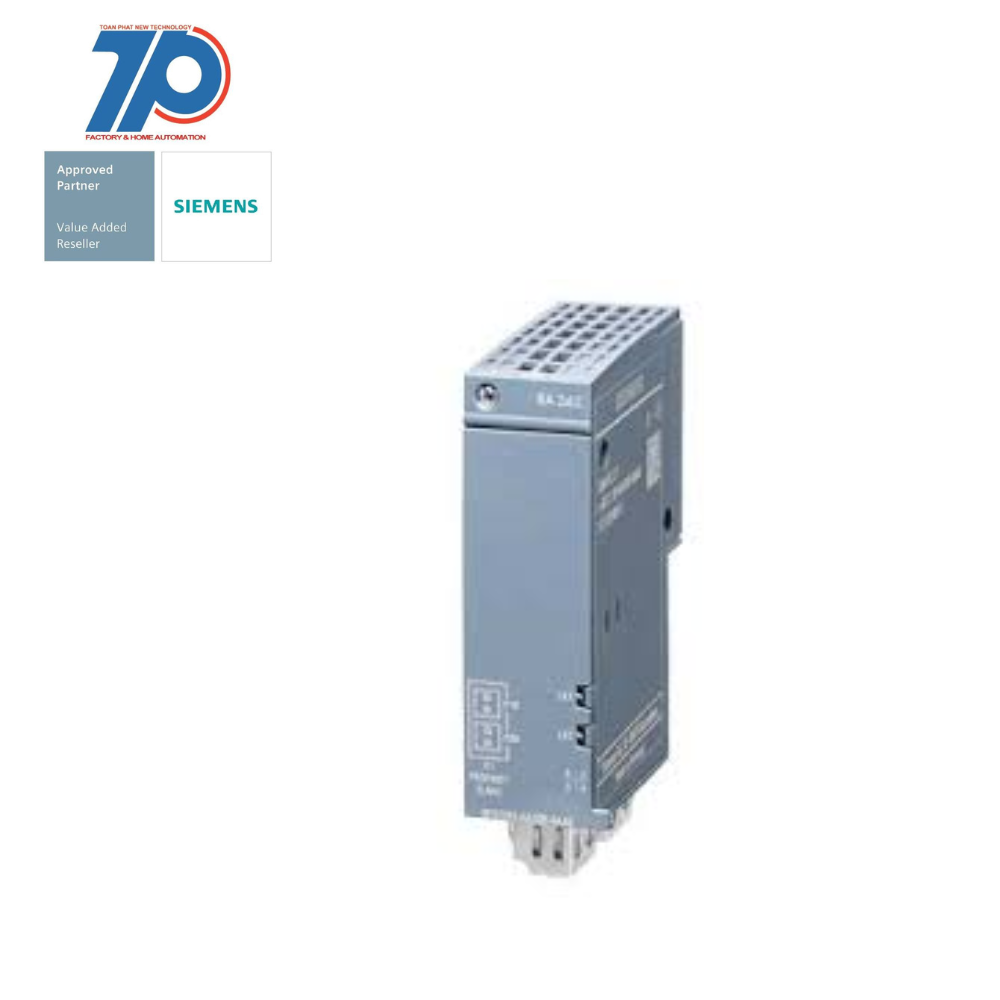

• SIMATIC bus adapter: BA LC/FC, media converter glass FOC/CU 1x LC FO connection and, 1x FastConnect (FC) connection
• SIMATIC ET 200SP is a modular, scalable, and highly flexible distributed I/O system.
• With its small footprint, it is particularly well-suited for installation in small control boxes near the machine.
• The modules can either be plugged directly into an ET 200SP CPU or connected to a central controller via PROFINET or PROFIBUS.
• SIMATIC ET 200SP can be expanded with up to 64 I/O modules, which can be inserted in any combination.
• The system provides a very comprehensive range of modules.
• Many modules are also available with a wide variety of characteristics, which considerably improve the scalability in regard to functionality and price.
• Thus, in addition to modules with standard functions (ST), modules with an extended range of functions and diagnostics (HF High Feature / HS High Speed) are also available.
• For price-sensitive applications, there are modules with basic functions (BA).
• The advantage of the ET 200SP system is in its ease of application, such as through the free selection of the PROFINET connection technology via the BusAdapter, the tool-free wiring by means of push-in technology, improved accessibility of the wiring due to a new arrangement of the spring releases, in addition to the associated conductor aperture and the channel-precise diagnostic functions.
• The availability and productivity of the machine are ensured by the capability of swapping modules and terminal boxes during operation, the so-called “hot swapping”.
• The scalable, cost-optimized configuration of an ET 200SP station is ensured by the wide range of signal modules.
• In addition to digital and analog input and output modules, respective fail-safe variants are also available for applications up to SIL 3 / PLe.
• This also applies to the integrated motor starters, which are suitable for motors up to 5.5 kW.
• Energy Meters for measuring and analyzing the energy consumption, IO-Link master (V1.1.), and many other communication and technology modules allow the system to be adapted to any automation task.
