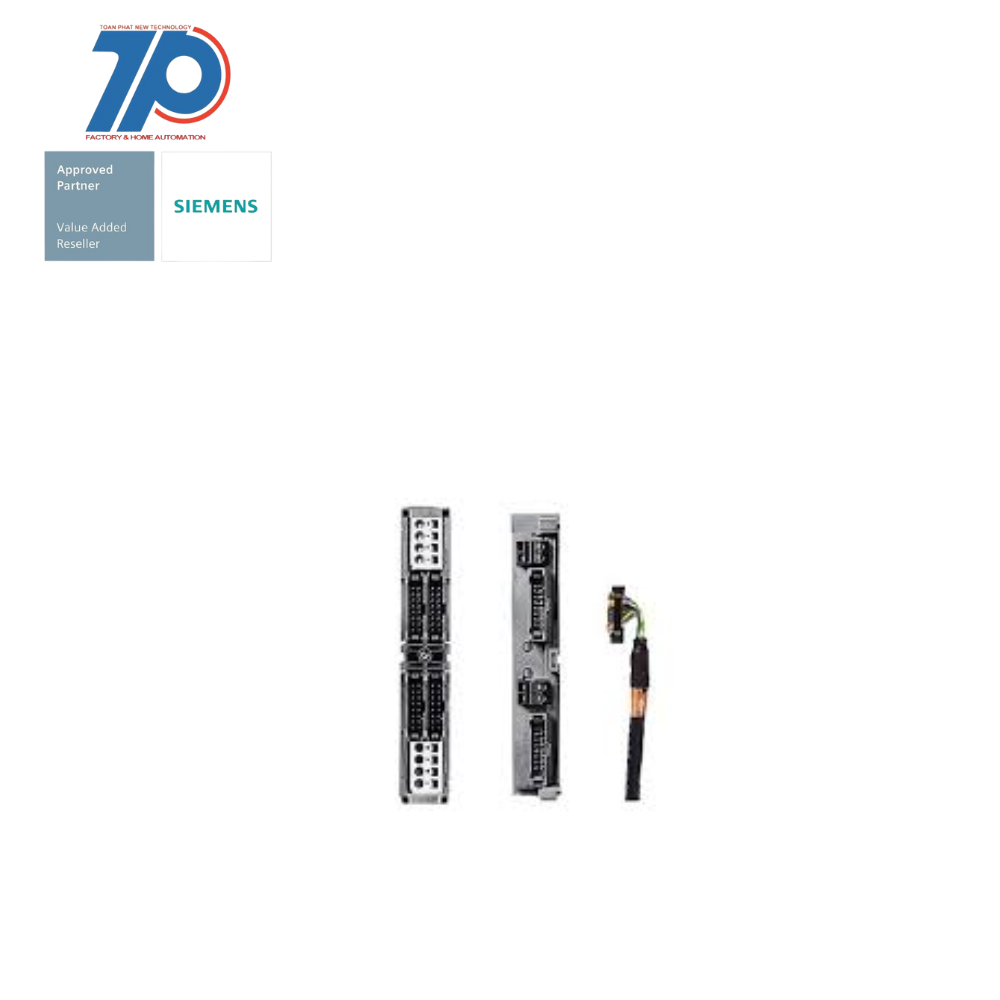

Material ID: 6ES7921-3AF20-0AA0
- Front connector module with flat ribbon Cable connection for analog (40 pins)
- Modules of the S7-300 Power supply over Spring terminals
- The front connector module for SIMATIC S7-300 with spring terminals for potential feed to connect 4×16-pole cables represents a modified front connector for connection to a analog I/O module.
- This is plugged into the module to be wired instead of the front connector.
- Here the cables are plugged in and connected to the connection module.
- This modified front connector module is part of the fully modular connection of SIMATIC TOP connect for the fastest and safest system cabling.
- In addition to low wiring costs, error sources in cabling can be significantly reduced.
- Sensors and actuators from the peripherals are attached to the connection modules of SIMATIC TOP connect and linked to the SIMATIC S7-300 via connecting cable and front plug-in module.
