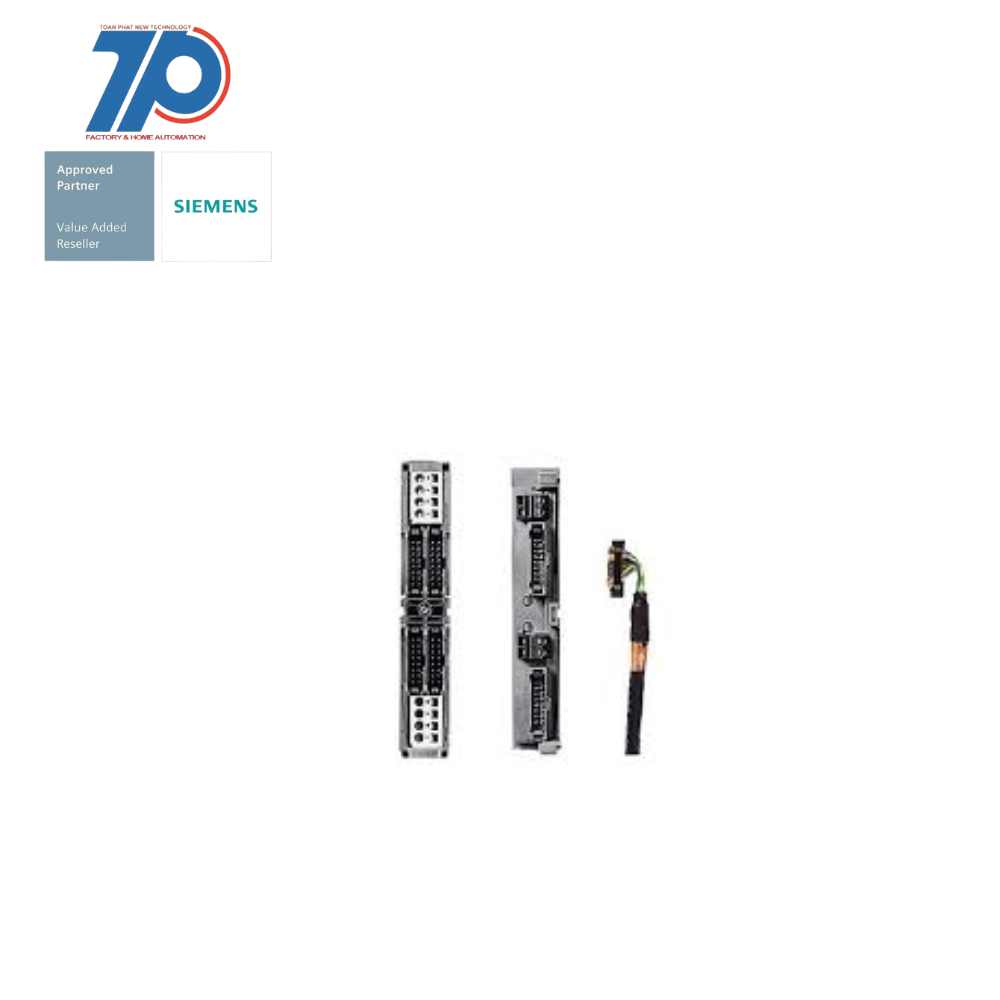

Material ID: 6ES7921-3AK20-0AA0
- Front connector module with flat ribbon
- Cable connection for compact CPU 312C for connection X1
- Power supply over Screw terminals
- The front connector module for SIMATIC S7 C CPU 312 with screw terminals for potential feed to connect 3×16-pole cables represents a modified front connector for connection to the Kompakt CPU 312.
- This is plugged into the C CPU 312 (X1) to be wired instead of the front connector.
- Here the cables are plugged in and connected to the connection module.
- This modified front connector module is part of the fully modular connection of SIMATIC TOP connect for the fastest and safest system cabling.
- In addition to low wiring costs, error sources in cabling can be significantly reduced.
- Sensors and actuators from the peripherals are attached to the connection modules of SIMATIC TOP connect and linked to the SIMATIC S7-300 via connecting cable and front plug-in module.
