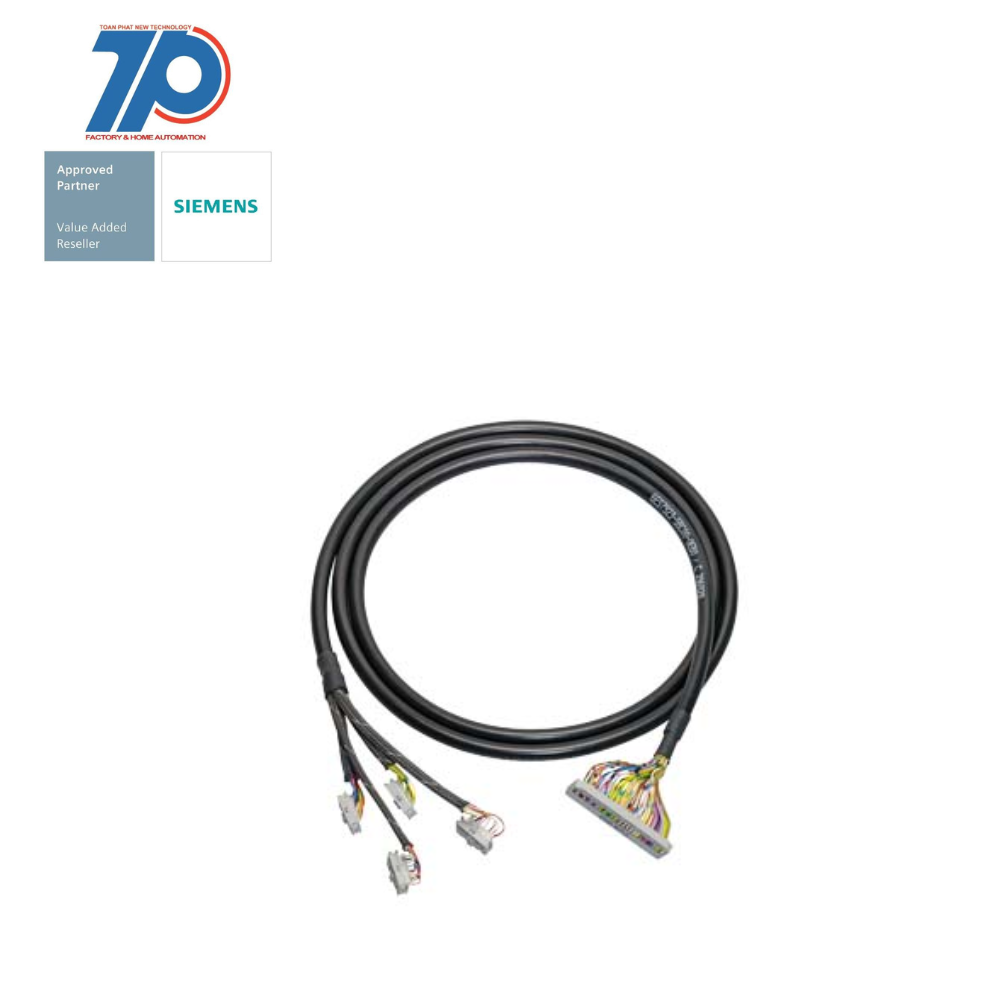

Material ID: 6ES7923-5BC50-0EB0
- Connecting cable unshielded f. SIMATIC S7-300/1500 0.14 mm2
- Between front connector module 4 x 16 pole and connection module 1 x 50 pole
- With IDC connectors
- L = 2.5 m
- The 50-pin round cable (unshielded) with a length of 2.5m
- Assembled on the side of the front connector module with 4 x 16-pin IDC plugs
- On the side of the connection module with a 50-pin IDC plug
- Pre-assembled cable enables a trouble-free and safe signal flow
- Complex installations remain manageable and can be checked in the shortest possible time
- Maintenance and expansion are affordable
- Part of the fully modular SIMATIC TOP connect connection
- Fastest and safest system cabling
- Low wiring costs
- Error sources in cabling can be significantly reduced
- Sensors and actuators from the peripherals are connected to the connection modules of SIMATIC TOP connect
- Connected to the SIMATIC S7-300/1500 via connecting cable and front plug-in module
