6GK5204-0BA00-2BA3

Material ID: 6GK5204-0BA00-2BA3

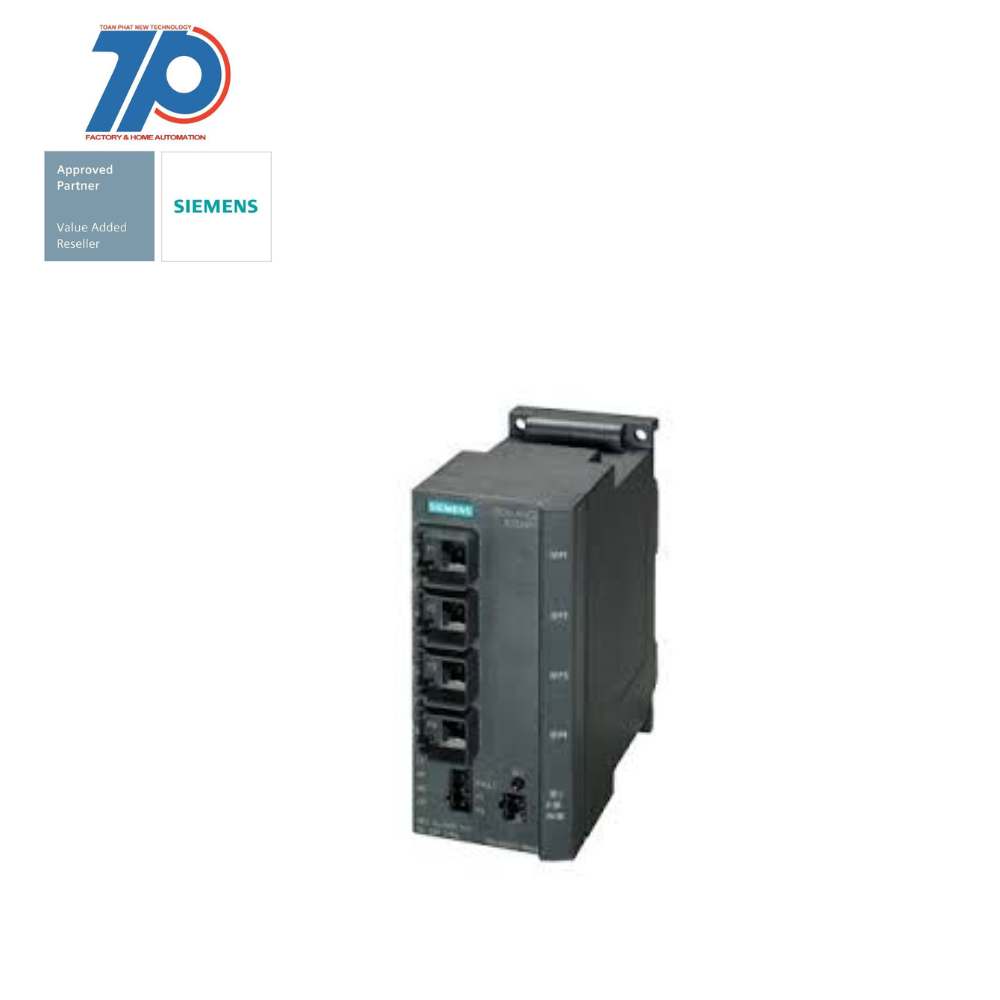

• SCALANCE X204IRT, managed IE IRT switch, 4x 10/100 Mbps RJ45 ports, error signaling contact with set pushbutton, redundant power supply, PROFINET IO device, network management, redundancy manager integrated, including electronic manual on CD-ROM, C-PLUG optional.
• SCALANCE X204IRT managed, Layer 2 compact switch, 4x 10/100 Mbps, RJ45 for isochronous motion control applications
• For high-performance, isochronous, motion control applications through IRT with integrated redundancy manager.
• Fast media redundancy, optimum performance through the combination of “Cut Through” and “Store and Forward” switching mechanisms, as well as high network availability in ring structures and smooth redundancy while using the PROFINET-compliant MRPD method.
• Data communication is secured by rugged, industry-standard station device connections via PROFINET-compliant connectors providing additional strain and bending relief.
• Configuration and diagnostics integrated into STEP 7 provide significant benefits during engineering, commissioning, and the operating phase of a plant.
• Option of device replacement without the need for a programming device using the C-PLUG removable data storage medium.
• Additional functions are PROFINET diagnostics and device diagnostics via LED, SNMP access, integrated Web server and automatic emailing function for remote diagnostics and signaling via the network.
• Managed, Layer 2 compact switch, 24 V DC, 4x 10/100 Mbps RJ45 ports electrical, PN IO device with IRT.
• The system also features extensive accessories, such as the C-PLUG removable data storage medium, SITOP PSU100C 24 V/0.6 A for stabilized power supply, IE SC RJ POF and PCF screw connectors with their corresponding cases for installation on site, RJ45 connectors, and various cable versions.
• &DPMD_ACK236_001_000_1002400&&DPMD_ACK238_001_000_1002400&
