6GK5324-0GG00-1CR2

Material ID: 6GK5324-0GG00-1CR2

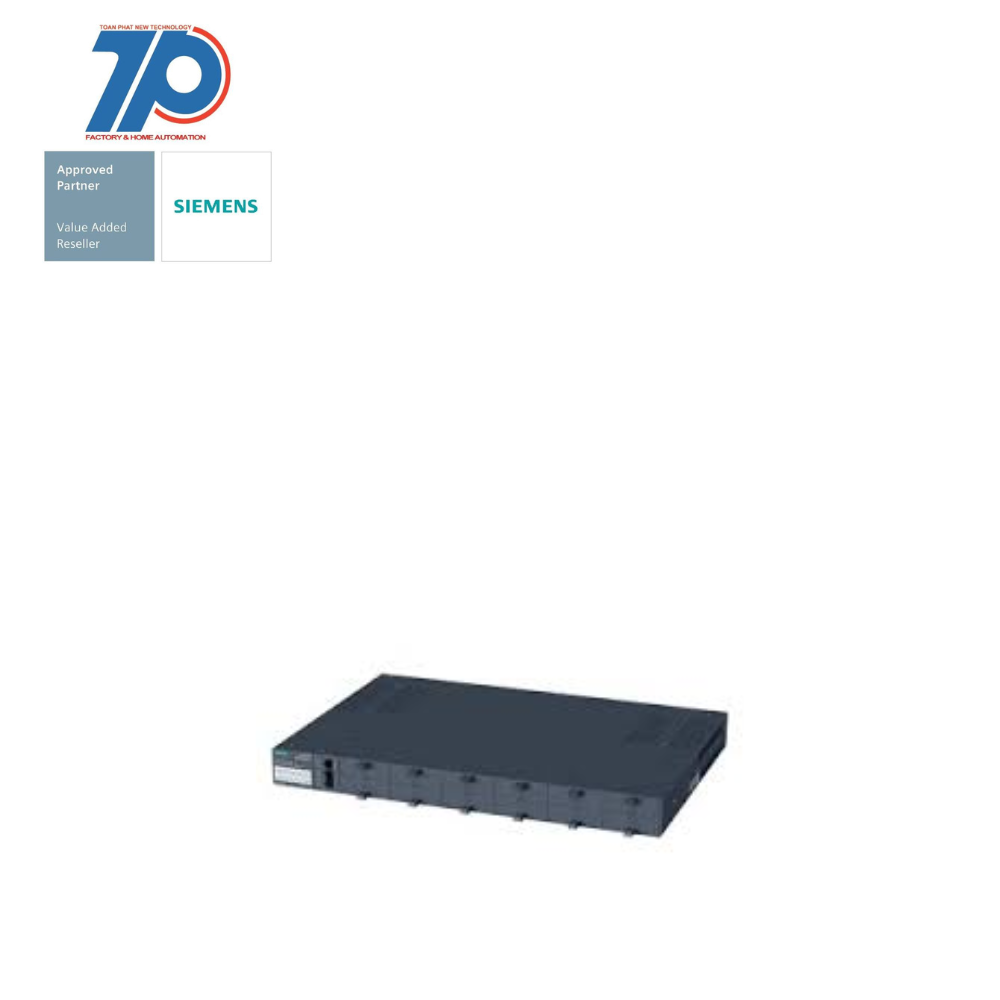

• SCALANCE XR324-12M TS; managed IE switch, 19 rack; 12x 100/1000 Mbit/s 2-port media modules, electrical or optical; LED diagnostics; error signaling contact; select/set pushbutton, PROFINET IO device, network management, integrated redundancy manager, office features (RSTP, VLAN, IGMP,..) C-PLUG in scope of supply; power supply 24 V DC; Ports in the front.
• SCALANCE XR324-12M TS managed, Layer 2 rack switch, 12x 100/1000 Mbps for media modules, 24 V DC, ports at the front for rail and road transport
• Installation in 19-inch rack for structured modular network design. For high-performance plant networks with connection to the company network. Suitable for railway applications.
• Unlimited flexibility during network expansions or modification, as well as reduction of stock-keeping costs in rail and road transport thanks to the fully modular structure using port modules.
• Seamless integration of automation networks into existing corporate networks thanks to support of numerous IT standard functions (VLANs, IGMP Snooping/Querier, STP/RSTP, Link Aggregation, Quality of Service), as well as time savings during engineering, commissioning and in the operating phase of a plant by using the integrated configuration and diagnostics in STEP 7.
• High network availability thanks to redundant power supply, redundant network structures based on fiber-optic cables or twisted pair cables with securing collar (redundancy manager, standby function or STP/RSTP are integrated), simple device replacement using C-PLUG removable data storage medium, and extremely fast network reconfiguration in the event of a fault.
• Space savings in control cabinet thanks to flexible cable outlet on the front or rear of the device.
• In addition, remote diagnostics by means of PROFINET diagnostics, Web browser, CLI or SNMP.
• Managed, Layer 2 rack switch, 24 V DC, 12x 100/1000 Mbps, 2-port media modules, electrical or optical, PN IO device, extended temperature range, ports at the front.
• The system is supplemented by SITOP PSU100C 24 V/0.6 A for stabilized power supply, a C-PLUG removable data storage medium, SC RJ POF and SC RJ PCF screw connectors, FC FO plugs and case for self-assembly of FO cables (LC) for installation on site, MM FO BFOC and SC connector set, M12 and RJ45 connectors, M12 cabinet bushing, terminal block for signaling contact, SCALANCE TAP104, and various FastConnect plug and cable versions (including preassembled) with stripping tool.
