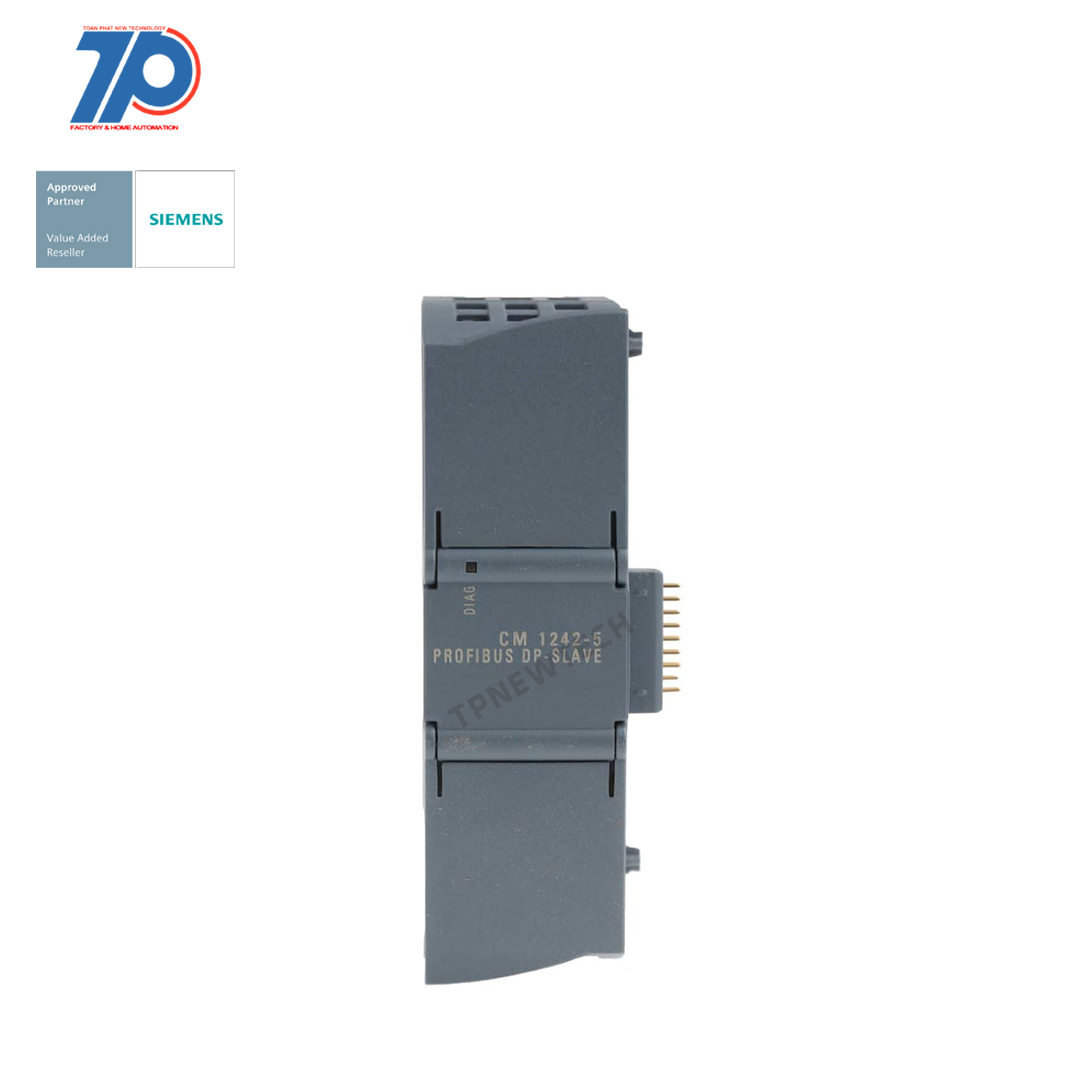

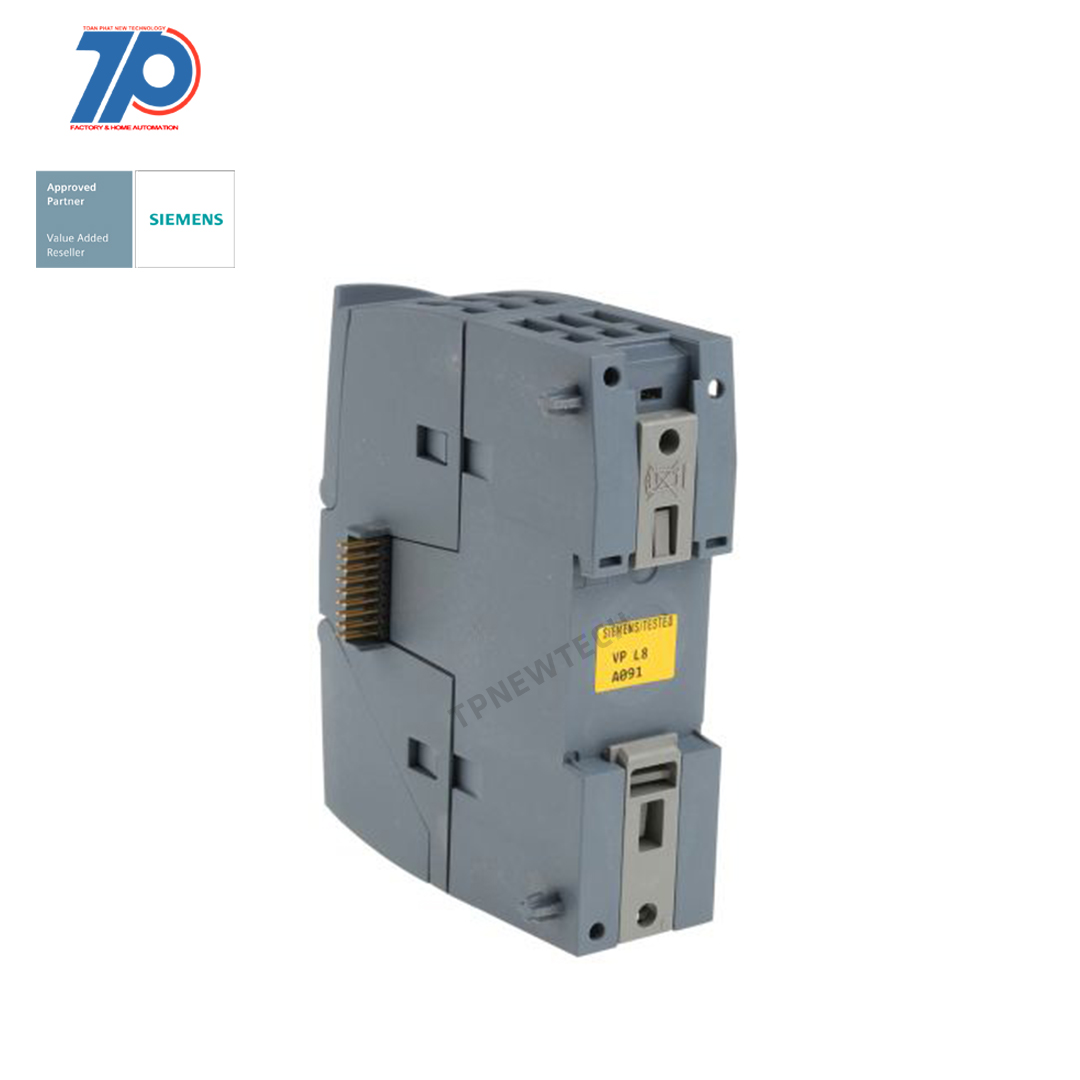

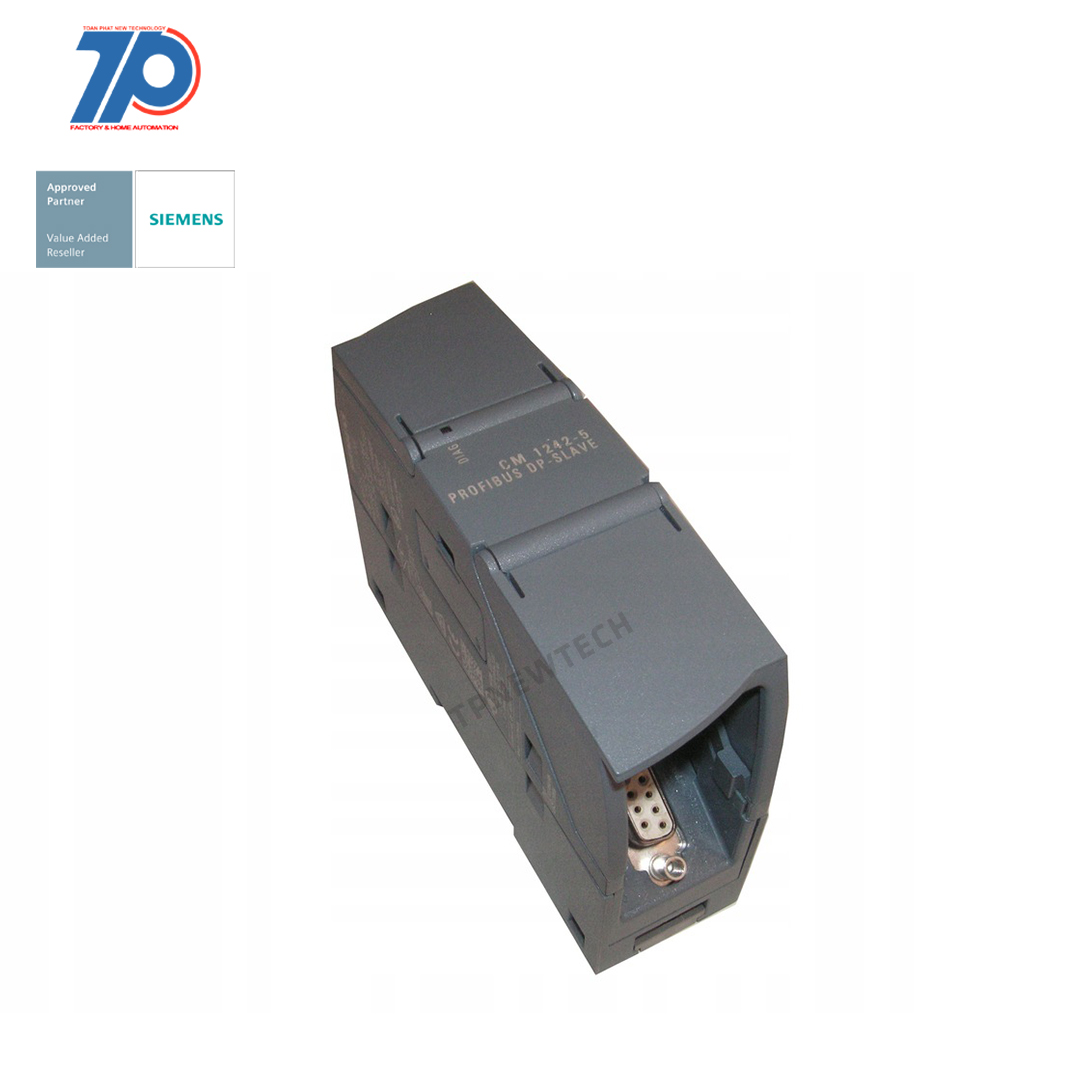

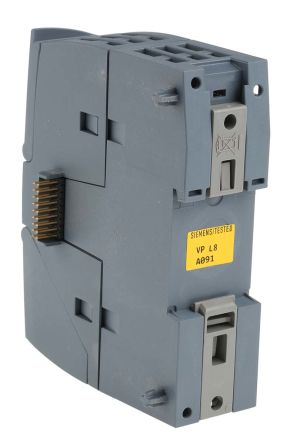

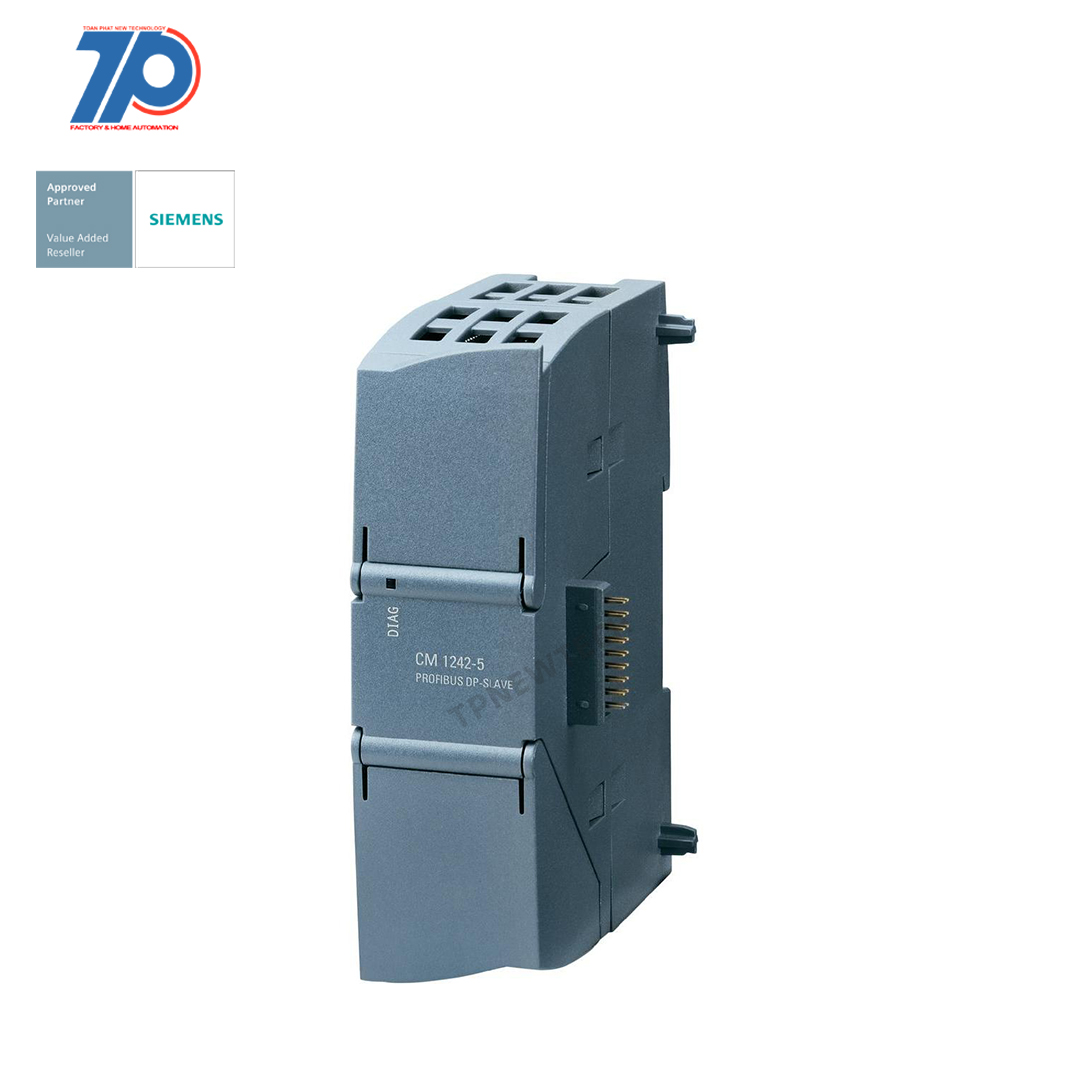

6GK7242-5DX30-0XE0 – S7-1200

Communication module CM 1242-5; for connection of SIMATIC S7-1200 to PROFIBUS as DP Slave module

Transfer rate

Transfer rate

● at the 1st interface / acc. to PROFIBUS 9.6 kbit/s … 12 Mbit/s

Interfaces

Number of interfaces / acc. to Industrial Ethernet 0

Number of electrical connections

● at the 1st interface / acc. to PROFIBUS 1

● for power supply 0

Type of electrical connection

● at the 1st interface / acc. to PROFIBUS 9-pin Sub-D socket (RS485)

Supply voltage, current consumption, power loss

Type of voltage / of the supply voltage DC

Supply voltage / 1 / from backplane bus 5 V

Consumed current

● from backplane bus / at DC / at 5 V / typical 0.15 A

Power loss [W] 0.75 W

Ambient conditions

Ambient temperature

● for vertical installation / during operation 0 … 45 °C

● for horizontally arranged busbars / during operation 0 … 55 °C

● during storage -40 … +70 °C

● during transport -40 … +70 °C

Relative humidity

● at 25 °C / without condensation / during operation / maximum 95 %

Protection class IP IP20

Design, dimensions and weights

Module format Compact module S7-1200 single width

Width 30 mm

Height 100 mm

Depth 75 mm

Net weight 0.115 kg

Mounting type

● 35 mm DIN rail mounting Yes

● S7-300 rail mounting No

● wall mounting Yes

Product features, product functions, product components / general

Number of units

● per CPU / maximum 3

Performance data / PROFIBUS DP

Service / as DP slave

● DPV0 Yes

● DPV1 Yes

Amount of data

● of the address area of the inputs / as DP slave / total 240 byte

● of the address area of the outputs / as DP slave / total 240 byte

Performance data / telecontrol

Protocol / is supported

● TCP/IP No

Product functions / management, configuration, engineering

Configuration software

● required STEP 7 Basic/Professional

Further information / Internet-Links

Internet-Link

● to website: Selector SIMATIC NET SELECTION TOOL http://www.siemens.com/snst

● to website: Industrial communication http://www.siemens.com/simatic-net

● to website: Industry Mall https://mall.industry.siemens.com

● to website: Information and Download Center http://www.siemens.com/industry/infocenter

● to website: Image database http://automation.siemens.com/bilddb

● to website: CAx Download Manager http://www.siemens.com/cax

● to website: Industry Online Support https://support.industry.siemens.com

Security information

Security information Siemens provides products and solutions with industrial security functions that support the secure operation of plants, solutions, machines, equipment and/or networks. They are important components in a holistic industrial security concept. With this in mind, Siemens’ products and solutions undergo continuous development. Siemens recommends strongly that you regularly check for product updates. For the secure operation of Siemens products and solutions, it is necessary to take suitable preventive action(e.g. cell protection concept) and integrate each component into a holistic, state-of-the-art industrial security concept. Third-party products that may be in use should also be considered. For more information about industrial security, visit http://www.siemens.com/industrialsecurity. To stay informed about product updates as they occur, sign up for a product-specific newsletter. For more information, visit http://support.automation.siemens.com. (V3.4)

last modified: 06/10/2020
