Material ID: 6XV1830-3EH10

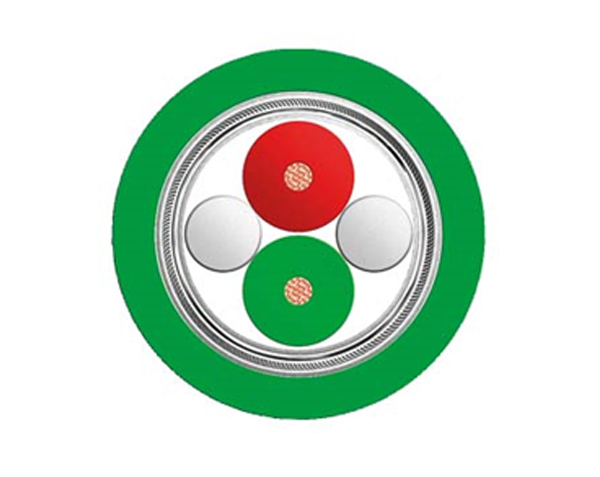

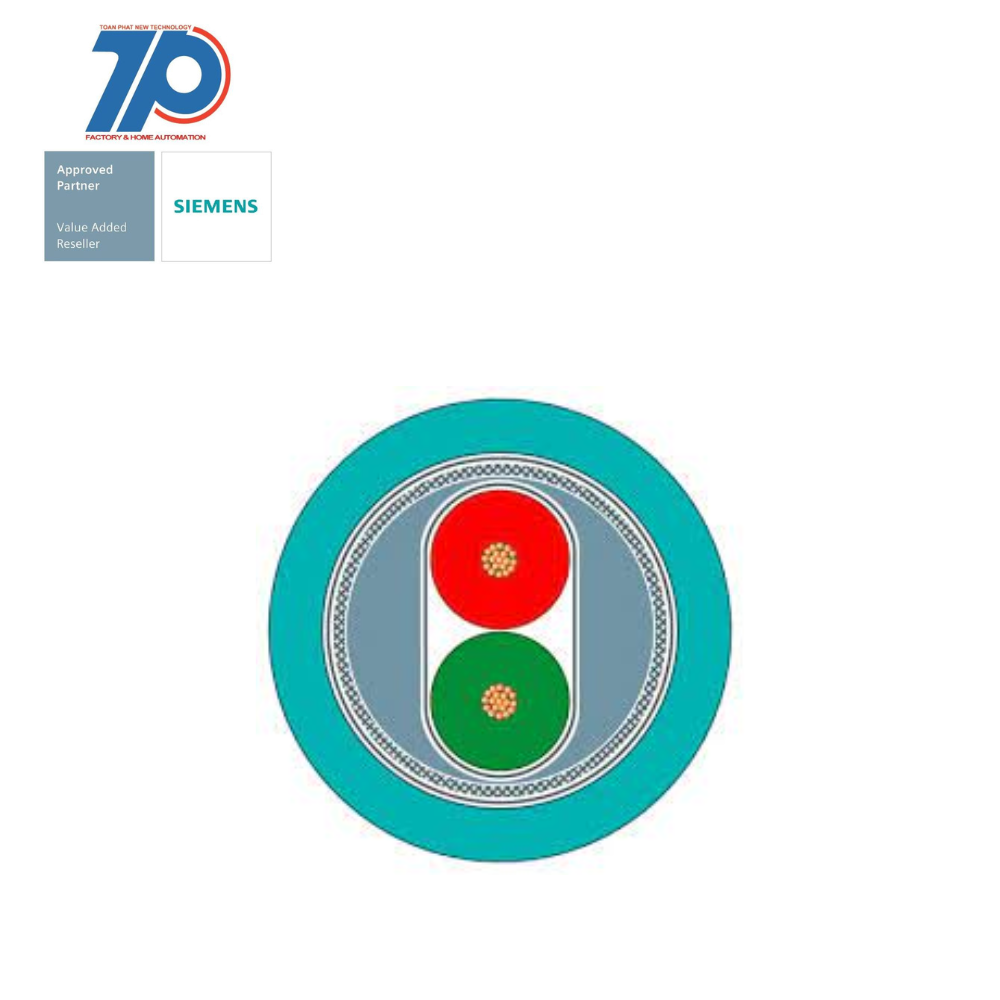

- PROFIBUS FC Trailing Cable
- PROFIBUS trailing cable
- Max. acceleration 4 m/QS
- Min. 3 million bending cycles
- Min. bending radius approx. 120 mm
- 2-wire shielded, sold by the meter
- Delivery unit max. 1000 m
- Minimum order quantity 20 m
- SIMATIC NET Cables
- PROFIBUS FC Trailing Cable
- Highly flexible bus cable specially designed for fast installation
- For use in continuous motion in a trailing cable
- Time is saved thanks to easy and quick on-site installation
- Reliable shield contact and strain relief
- Efficient EMC shielding
- Network is not sensitive to interferences due to shielded, twisted-pair cable
- System-wide grounding concept can be implemented using the external shield of the bus cable and the grounding terminals on the bus terminal
- Silicone-free, therefore suitable for use in the automotive industry (for example on paint lines)
- Easy length measurement thanks to printed meter marking
