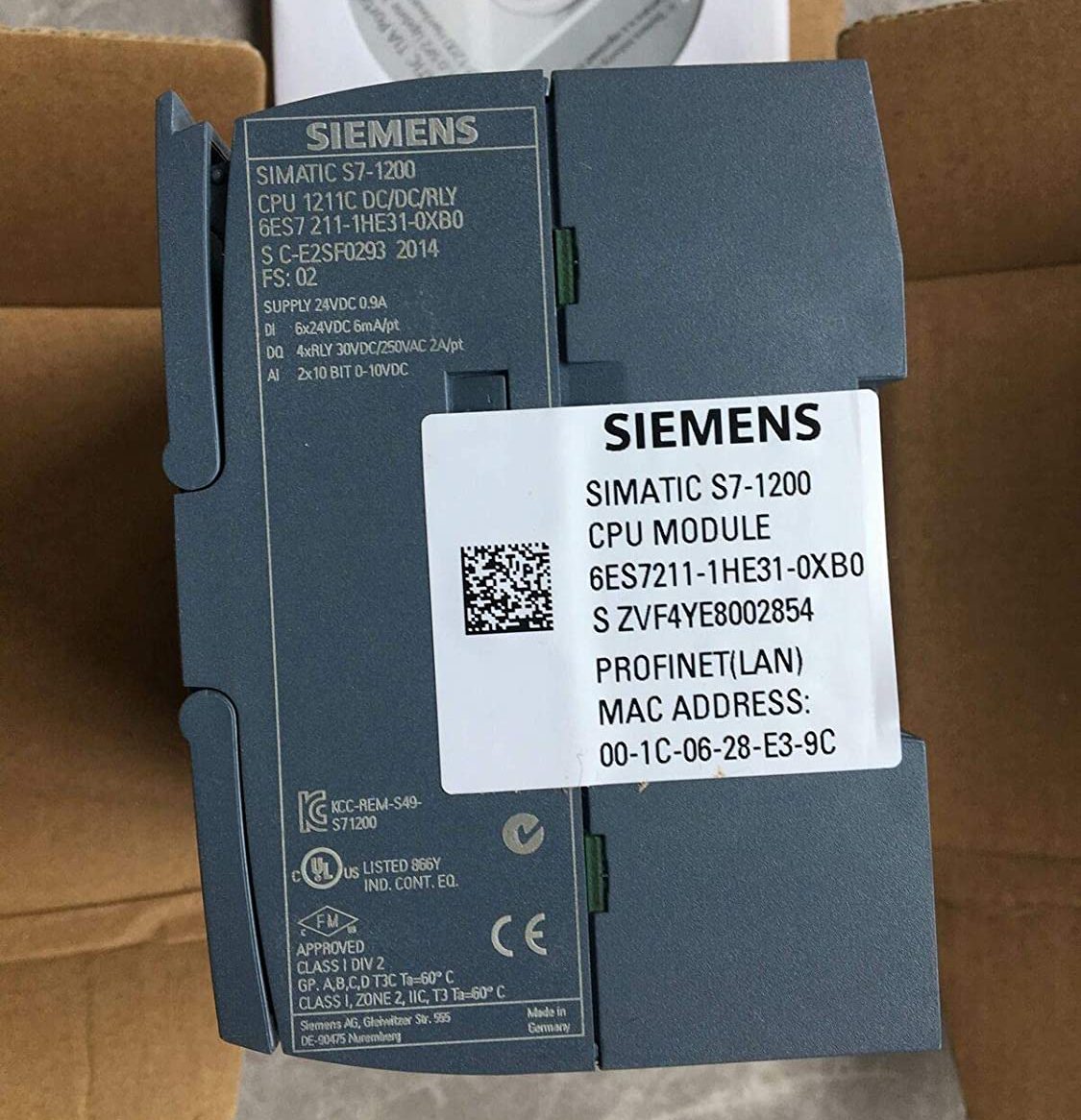

Freeship nội thành HCM6ES7211-1HE31-0XB0 – CPU 1211C DC/DC/RLY
1₫
--- Giá chưa bao gồm VAT ----
Giá có thể thay đổi, vui lòng liên hệ trước khi đặt hàng (Luôn có giá tốt khi mua số lượng nhiều)
Bảo hành 12 tháng khi mua tại TPNewtech.
Thời gian vận chuyển:
Thời gian giao hàng ước tính từ 1 - 5 ngày trên toàn quốc.
Luôn có chương trình hỗ trợ dự án công trình
-> Hãy Liên hệ ngay cho chúng tôi
Chi Tiết Sản Phẩm
Material ID: 6ES7211-1HE31-0XB0
- SIMATIC S7-1200, CPU 1211C, compact CPU, DC/DC/relay, onboard I/O: 6 DI 24 V DC; 4 DO relay 2A; 2 AI 0-10 V DC
- Power supply: AC 20.4-28.8V DC
- Program/data memory 30 KB
- SIMATIC S7-1200 Basic Controller – Flexible thanks to wide variety of communication options
- First choice for implementing automation tasks flexibly and efficiently in the mid to low performance range
- Scaled in performance and available for different input voltages and with transistor or relay outputs
- Safety versions are also available
- Compact CPUs can be expanded directly on the device or with a wide variety of signal and communication modules
- HMI devices can be connected via the integrated Ethernet interface
- Memory of the CPU can be expanded by means of a memory card
- PLC is configured using the STEP 7 Basic software in the TIA Portal
- Wide range of networking options via various communication standards
- Offers maximum flexibility in topology and network setup
- Compact design, modular structure, and integrated IOs help save space in the control cabinet
- Fields of application range from simple packaging machines to use as a subordinate control system in larger plants
- STEP 7 configuration software is integrated into the TIA Portal
- Lower configuration costs and faster commissioning
Additional Information
Support
| Technical Data | Manuals / Links |
Thông Tin Kỹ Thuật 6ES7211-1HE31-0XB0 – CPU 1211C DC/DC/RLY
SIMATIC S7-1200, CPU 1211C, compact CPU, DC/DC/relay, onboard I/O: 6 DI 24 V DC; 4 DO relay 2A; 2 AI 0-10 V DC, Power supply: AC 20.4-28.8V DC, Program/data memory 30 KB
General information
Product type designation CPU 1211C DC/DC/relay
Engineering with
● Programming package STEP 7 V11 SP2 or higher
Supply voltage
Rated value (DC)
● 24 V DC Yes
permissible range, lower limit (DC) 20.4 V
permissible range, upper limit (DC) 28.8 V
Load voltage L+
● Rated value (DC) 24 V
● permissible range, lower limit (DC) 20.4 V
● permissible range, upper limit (DC) 28.8 V
Input current
Current consumption (rated value) 300 mA; Typical
Current consumption, max. 0.9 A; 24 V DC
Inrush current, max. 12 A; at 28.8 V DC
Output current
for backplane bus (5 V DC), max. 750 mA; Max. 5 V DC for SM and CM
Encoder supply
24 V encoder supply
● 24 V Permissible range: 20.4V to 28.8V
Power loss
Power loss, typ. 8 W
Memory
Work memory
● integrated 30 kbyte
● expandable No
Load memory
● integrated 1 Mbyte
Backup
● present Yes; maintenance-free
● without battery Yes
CPU processing times
for bit operations, typ. 0.085 µs; / instruction
for word operations, typ. 1.7 µs; / instruction
for floating point arithmetic, typ. 2.5 µs; / instruction
CPU-blocks
Number of blocks (total) DBs, FCs, FBs, counters and timers. The maximum number of addressable blocks ranges from 1 to 65535. There is no restriction, the entire working memory can be used
OB
● Number, max. Limited only by RAM for code
Data areas and their retentivity
Retentive data area (incl. timers, counters, flags), max. 10 kbyte
Flag
● Number, max. 4 kbyte; Size of bit memory address area
Address area
I/O address area
● Inputs 1 024 byte
● Outputs 1 024 byte
Process image
● Inputs, adjustable 1 kbyte
● Outputs, adjustable 1 kbyte
Hardware configuration
Number of modules per system, max. 3 communication modules, 1 signal board
Time of day
Clock
● Hardware clock (real-time) Yes
● Backup time 480 h; Typical
● Deviation per day, max. ±60 s/month at 25 °C
Digital inputs
Number of digital inputs 6; Integrated
● of which inputs usable for technological functions 3; HSC (High Speed Counting)
Source/sink input Yes
Number of simultaneously controllable inputs
all mounting positions
— up to 40 °C, max. 6
Input voltage
● Rated value (DC) 24 V
● for signal “0” 5 V DC at 1 mA
● for signal “1” 15 V DC at 2.5 mA
Input current
● for signal “1”, typ. 1 mA
Input delay (for rated value of input voltage)
for standard inputs
— parameterizable 0.2 ms, 0.4 ms, 0.8 ms, 1.6 ms, 3.2 ms, 6.4 ms and 12.8 ms, selectable in groups of four
— at “0” to “1”, min. 0.2 ms
— at “0” to “1”, max. 12.8 ms
for interrupt inputs
— parameterizable Yes
for technological functions
— parameterizable Single phase : 3 @ 100 kHz, differential: 3 @ 80 kHz
Cable length
● shielded, max. 500 m; 50 m for technological functions
● unshielded, max. 300 m; for technological functions: No
Digital outputs
Number of digital outputs 4; Relays
Short-circuit protection No; to be provided externally
Switching capacity of the outputs
● with resistive load, max. 2 A
● on lamp load, max. 30 W with DC, 200 W with AC
Output delay with resistive load
● “0” to “1”, max. 10 ms; max.
● “1” to “0”, max. 10 ms; max.
Switching frequency
● of the pulse outputs, with resistive load, max. 1 Hz
Relay outputs
● Number of relay outputs 4
● Number of operating cycles, max. mechanically 10 million, at rated load voltage 100 000
Cable length
● shielded, max. 500 m
● unshielded, max. 150 m
Sản phẩm liên quan: 6ES7211-1AE40-0XB0 , 6ES7211-1BE40-0XB0 , 6ES7211-1HE40-0XB0 , 6ES7211-1AE31-0XB0 , 6ES7211-1BE31-0XB0
| Trọng lượng | 0.35 kg |
|---|---|
| Country of Origin | CN |
